Full specifications (PDF)
Protection Type:
Surge
Altronix ALTV2432600UL Power Device
Part Number:
ALTV2432600UL
Model:
ALTV2432600UL
Altronix ALTV2432600UL Power Device Model Overview

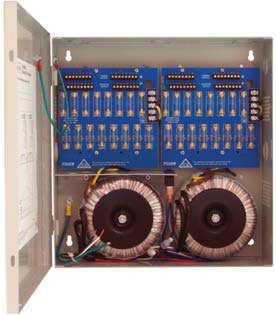

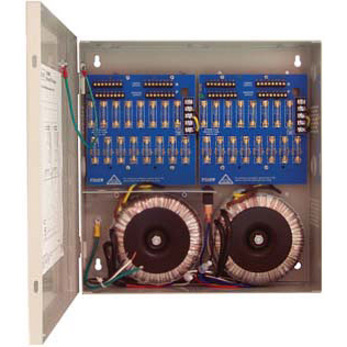

The Altronix ALTV2432600UL Output Power Supply provides 24VAC or 28VAC distributed via thirty-two (32) fuse or Class 2 Rated PTC protected power limited outputs. The unit is designed to power CCTV cameras, heaters and other video accessories. It has a supply current of 24VAC @ 25 amp (600VA) or 28VAC @ 20 amp (560VA). ALTV2432600UL Output Power Supply comes with an illuminated power disconnect circuit breaker with reset.
Altronix ALTV2432600UL Power Device Overview
These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via thirty-two (32) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 25 A
- 28 V AC @ 20 A
Input Current:
5.4 A @ 110V
Output Current:
- 25 A
- 20 A
Output Power:
600 W
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Miscellaneous
Package Contents:
- ALTV2432600UL Proprietary Power Supply
- Spare Fuse
Compatibility:
- Heaters
- CCTV Cameras
- Video Accessories
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239939275
UPC:
782239939275
EAN:
0782239939275
UNSPSC:
39121004
