Full specifications (PDF)
Protection Type:
- Fuse
- Surge
Altronix ALTV2416600UL3 Accessory
Part Number:
ALTV2416600UL3
Model:
ALTV2416600UL
Altronix ALTV2416600UL Accessory Model Overview
Model ALTV2416600UL provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs.
Altronix ALTV2416600UL3 Accessory Overview

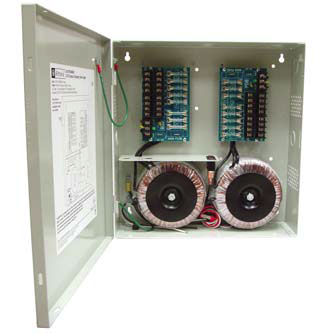

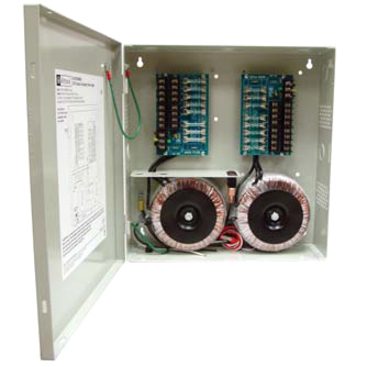

These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 25 A
- 28 V AC @ 20 A
Input Current:
5.4 A @ 110V
Output Current:
- 25 A
- 20 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
23.10 lb
Miscellaneous
Package Contents:
- ALTV2416600UL3 Proprietary Power Supply
- Spare Fuses
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239941759
UPC:
782239941759
EAN:
0782239941759
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix ALTV2416600UL3 Accessory is also known as
ALT-ALTV2416600UL3
