Protection Type:
Surge

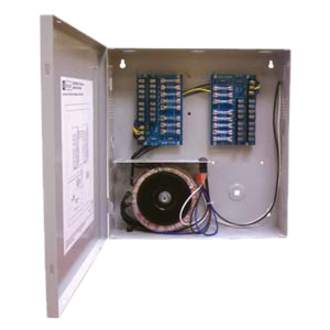

Altronix ALTV2416350 Power Device
Part Number:
ALTV2416350
Model:
ALTV2416350CCTV
Altronix ALTV2416350CCTV Power Device Model Overview
Altronix ALTV2416350 and ALTV2416350CB are reliable AC wall mount CCTV power supplies, designed to deliver 24VAC or 28VAC efficiently. With the ability to support up to sixteen (16) outputs, your CCTV cameras, heaters, and other video accessories stay powered and secure. Featuring both fuse and PTC protected models, these supplies maintain camera synchronization while incorporating surge suppression and illuminated indicators for increased visibility. Their compact design allows for easy installation, saving you time and minimizing labor costs without compromising on quality.
Key Features
Specifications
Key Features
- Sixteen (16) fused protected outputs (ALTV2416350)
- Sixteen (16) PTC protected outputs (ALTV2416350CB)
- 115VAC input at 2.7 amps
- Surge suppression for added protection
- Illuminated master power switch with a built-in circuit breaker
- Spare fuse(s) included for both primary and secondary fuses
Specifications
- Input - 115VAC, 50/60Hz, 2.7 amp
- Output ratings:
- 24VAC @ 14 amp (350VA) or 28VAC @ 12.5 amp (350VA)
- Fuses rated @ 3.5 amp
- PTCs rated @ 2.5 amp
- Main fuse rated @ 15 amp/32V
- Dimensions - 13"H x 13.5"W x 3.25"D
Altronix ALTV2416350 Power Device Overview
These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 14 A
- 28 V AC @ 12.5 A
Input Current:
2.7 A @ 110V
Output Current:
- 14 A
- 12.50 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
17.20 lb
Miscellaneous
Compatibility:
- Heaters
- CCTV Cameras
- Video Accessories
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239931279
UPC:
782239931279
EAN:
0782239931279
UNSPSC:
39121004
