Altronix ALTV2416300ULM3 Accessory
Part Number:
ALTV2416300ULM3
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix ALTV2416300ULM3 Accessory Overview

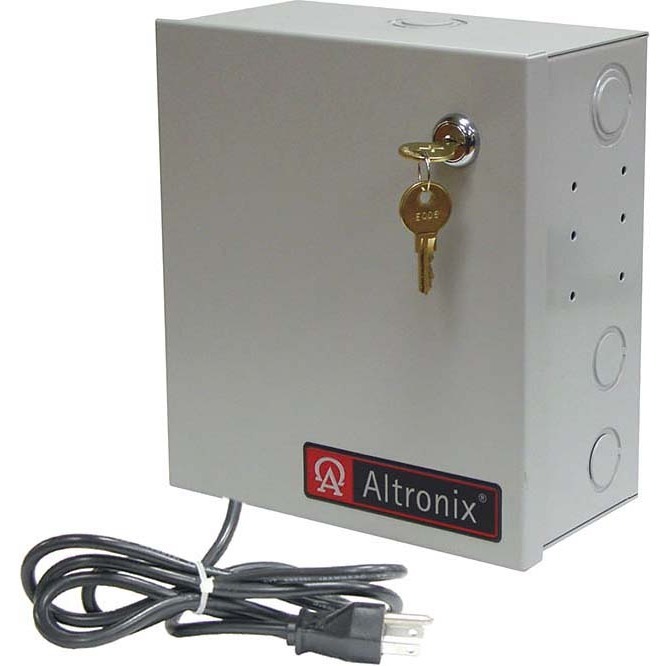

ALTV2416300ULM3 provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 12.5 A
- 28 V AC @ 10 A
Input Current:
2.7 A @ 110V
Output Current:
- 12.50 A
- 10 A
Output Power:
- 280 W
- 300 W
Controls/Indicators
Status Indicators:
AC Power LED
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
8.20 lb
Miscellaneous
Certifications & Standards:
- UL (UL2044)
- CUL (CSA Standard C22.2 No.1-98)
- CE
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239941711
UPC:
782239941711
EAN:
0782239941711
UNSPSC:
39121004
