Protection Type:
- Fuse
- Surge
Altronix ALTV2416300UL Power Device
Part Number:
ALTV2416300UL
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview

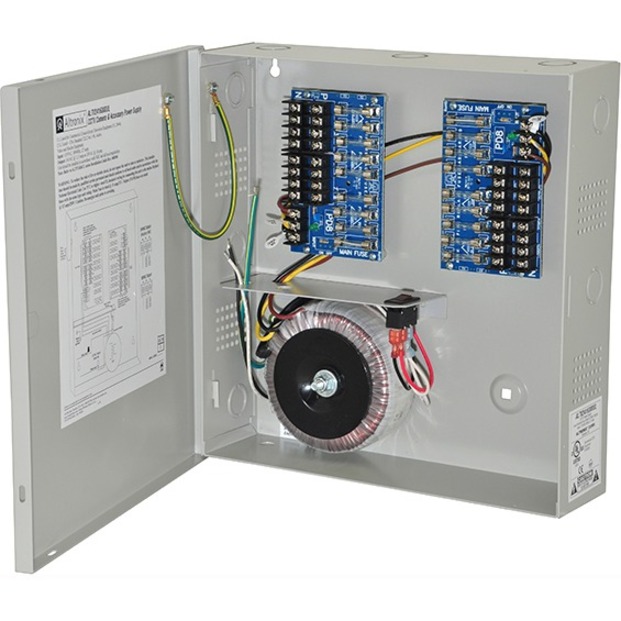

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 12.5 A
- 28 V AC @ 10 A
Input Current:
2.7 A @ 110V
Output Current:
- 12.50 A
- 10 A
Interfaces/Ports
Plug/Connector:
Voltage Selector Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
18.10 lb
Miscellaneous
Additional Information:
- 24/28VAC Selectable Output
- 16 x 24/28VAC Outputs
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0115971154475, 0782239939244, 4703876699298
UPC:
115971154475, 782239939244
EAN:
0115971154475, 0782239939244, 4703876699298
UNSPSC:
39121004
