Full specifications (PDF)
Input Voltage Type:
AC
Input Voltage:
115 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Input Current:
1.45 A @ 110V
Altronix ALTV1224DC2 Power Device Model Overview

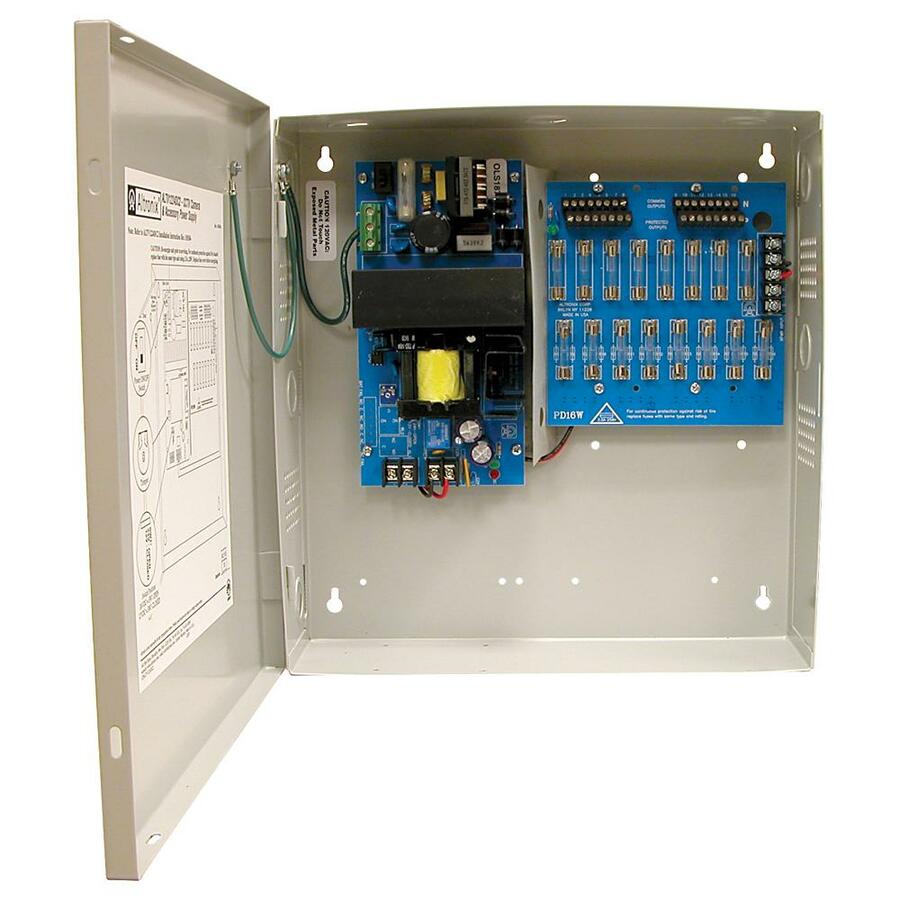

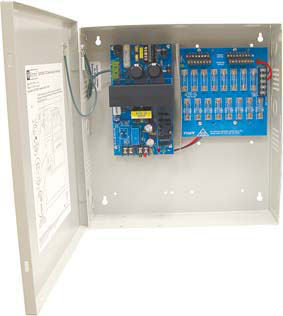

Altronix ALTV1224DC2 Power Supply DC CCTV power supply is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) fused or PTC protected outputs with a total of 6 amp total supply current. It has AC input and DC output LED indicators. This Unit maintains camera synchronization.
Altronix ALTV1224DC2 Power Device Overview
Model ALTV1224DC2 provides 12VDC or 24VDC @ 6 amp of total continuous supply current distributed via sixteen (16) fuse protected outputs.
Power Description
Controls/Indicators
Status Indicators:
AC/DC power LED indicator
Physical Characteristics
Height:
13.5"
Width:
13"
Depth:
3.3"
Miscellaneous
Additional Information:
- Filtered and electronically regulated outputs
- Output fuses are rated @ 1 amp
- Input fuse is rated @ 3.5 amp
- Surge suppression
- Power ON/OFF switch
- Unit maintains camera synchronization
Compatibility:
Close Circuit TV Cameras, heaters and other video accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930807, 0782239931576
UPC:
782239930807, 782239931576
EAN:
0782239930807, 0782239931576
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix ALTV1224DC2 Power Device is also known as
ALT-ALTV1224DC2
