Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL600ULXPD16CB Accessory
Part Number:
AL600ULXPD16CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL600ULXPD16CB Accessory Overview

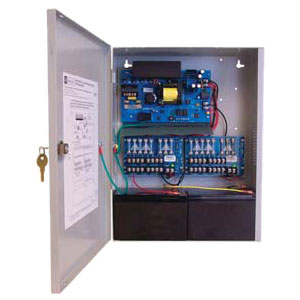

Model AL600ULXPD16CB power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated outputs. Model AL600ULXPD16 is a fuse protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Input Current:
1.9 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12"
Depth:
4.5"
Weight (Approximate):
10.30 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936915, 4703876699229
UPC:
782239936915
EAN:
0782239936915, 4703876699229
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULXPD16CB Accessory is also known as
ALT-AL600ULXPD16CB
