Protection Type:
- Thermal Overload
- Short Circuit
Altronix AL600ULXD Accessory
Part Number:
AL600ULXD
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL600ULXD Accessory Overview

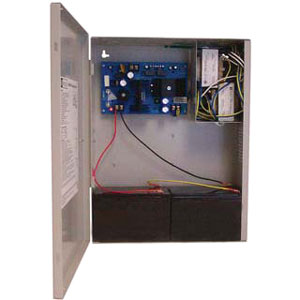

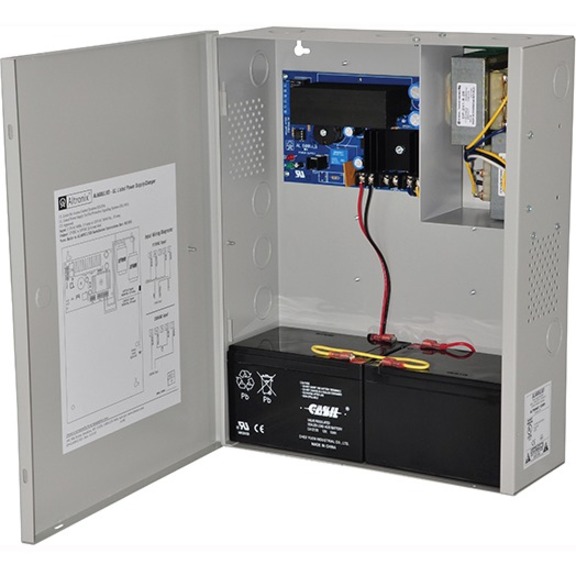

This AL600ULXD power supply/charger converts a 115VAC or 230VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
115 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
Input Current:
- 1.9 A @ 110V
- 950 mA @ 220V
Output Current:
2.50 A
Interfaces/Ports
Plug/Connector:
Voltage Selector Switch
Physical Characteristics
Height:
15.5"
Width:
12"
Depth:
4.5"
Weight (Approximate):
13.90 lb
Miscellaneous
Additional Information:
- 12VDC or 24VDC selectable output
- Built-in charger for sealed lead acid or gel type battery backup
- Maximum charge current 0.7 amp
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239933761, 4703876699212
UPC:
782239933761
EAN:
0782239933761, 4703876699212
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULXD Accessory is also known as
ALT-AL600ULXD
