Full specifications (PDF)
Protection Type:
- Thermal Overload
- Short Circuit

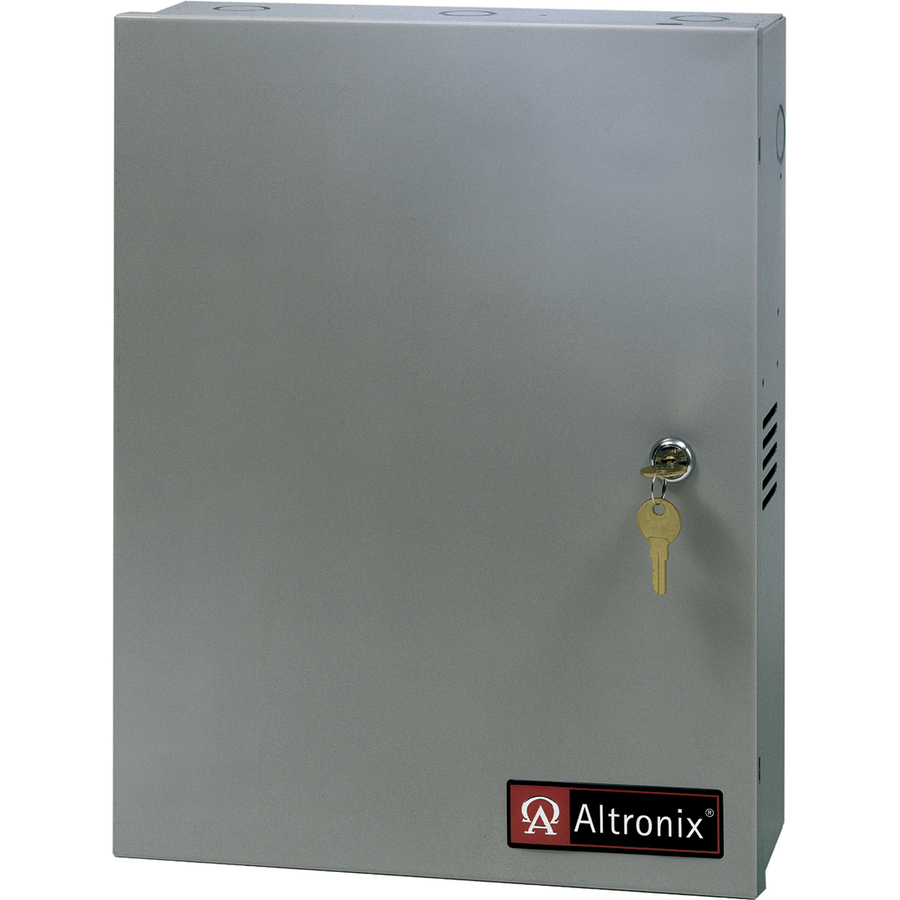

Altronix AL600ULMX Power Device
Part Number:
AL600ULMX
Model:
AL600ULM
Altronix AL600ULM Power Device Model Overview
The Altronix AL300ULM, AL400ULM, and AL600ULM are reliable multi-output access control power supply/chargers designed explicitly for access control systems. With the capability to convert 115VAC/60Hz input into five individually protected 12VDC or 24VDC outputs, these units efficiently route power to essential hardware like Mag Locks and Electric Strikes. They operate in both Fail-Safe and Fail-Secure modes, ensuring versatility and security. The integrated charger supports sealed lead acid or gel-type batteries, with features such as automatic switch-over to backup power during AC failures, enhancing safety and reliability.
Key Features
Specifications
Key Features
- Five individually protected outputs: Rated at 2.5 amp.
- Automatic battery backup: Zero voltage drop when switching to standby.
- Thermal and short circuit protection: Ensures longevity of the device.
- Compliance: UL listed for various safety standards.
- Integrated LED indicators: Monitor power outputs and battery status.
Specifications
- Input: 115VAC at 60 Hz
- AL300ULM rated @ 1.45 amp
- AL400ULM rated @ 1.9 amp
- AL600ULM rated @ 2.5 amp
- Power limited outputs: Class 2 rated @ 2.5 amp
- Output relay: Form "C" contact rated 1 amp @ 28VDC
- Charger: Supports up to two 12VDC/7AH batteries
- Agency Approvals: UL Listed (multiple standards), CUL Listed, MEA Approved, CSFM Approved
Altronix AL600ULMX Power Device Overview
This multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. These units convert a 115VAC / 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.
Technical Information
Power Description
Number of +12V Rails:
5
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
1.45 A @ 110V
Output Current:
6 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
9.15 lb
Miscellaneous
Compatibility:
- Fire Alarm Panels
- Protective Signaling Systems
- Signal Equipments
Access Control Systems:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
NDAA Compliant:
Yes
Item Numbers
GTIN:
0782239935901
UPC:
782239935901
EAN:
0782239935901
UNSPSC:
39121004
