Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

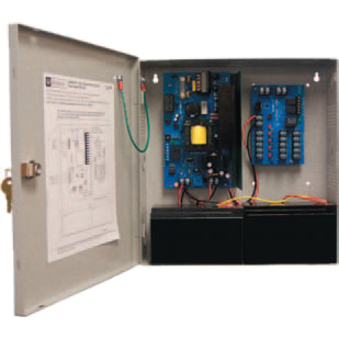

Altronix AL600ULM Power Device
Part Number:
AL600ULM
Model:
AL600ULM
Altronix AL600ULM Power Device Model Overview
The Altronix AL300ULM, AL400ULM, and AL600ULM are reliable multi-output access control power supply/chargers designed explicitly for access control systems. With the capability to convert 115VAC/60Hz input into five individually protected 12VDC or 24VDC outputs, these units efficiently route power to essential hardware like Mag Locks and Electric Strikes. They operate in both Fail-Safe and Fail-Secure modes, ensuring versatility and security. The integrated charger supports sealed lead acid or gel-type batteries, with features such as automatic switch-over to backup power during AC failures, enhancing safety and reliability.
Key Features
Specifications
Key Features
- Five individually protected outputs: Rated at 2.5 amp.
- Automatic battery backup: Zero voltage drop when switching to standby.
- Thermal and short circuit protection: Ensures longevity of the device.
- Compliance: UL listed for various safety standards.
- Integrated LED indicators: Monitor power outputs and battery status.
Specifications
- Input: 115VAC at 60 Hz
- AL300ULM rated @ 1.45 amp
- AL400ULM rated @ 1.9 amp
- AL600ULM rated @ 2.5 amp
- Power limited outputs: Class 2 rated @ 2.5 amp
- Output relay: Form "C" contact rated 1 amp @ 28VDC
- Charger: Supports up to two 12VDC/7AH batteries
- Agency Approvals: UL Listed (multiple standards), CUL Listed, MEA Approved, CSFM Approved
Altronix AL600ULM Power Device Overview
AL600ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC, 60Hz input into five (5)individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
2.5 A @ 110V
Output Current:
6 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
8 lb
Miscellaneous
Compatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930852
UPC:
782239930852
EAN:
0782239930852
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULM Power Device is also known as
ALT-AL600ULM
