Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL600ULACMCB Accessory
Part Number:
AL600ULACMCB
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

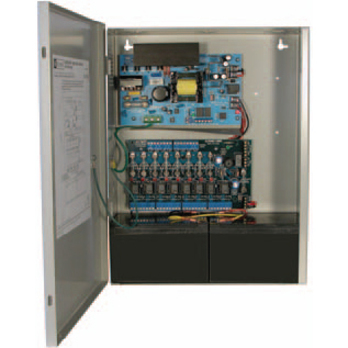

Altronix AL600ULACMCB Accessory Overview
Model AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACM is a fuse protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
1.9 A @ 110V
Output Current:
6 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
10.20 lb
Miscellaneous
Compatibility:
- Signal Equipments
Access Control Devices:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239934096, 4703876699151
UPC:
782239934096
EAN:
0782239934096, 4703876699151
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULACMCB Accessory is also known as
ALT-AL600ULACMCB
