Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL600ULACM Accessory
Part Number:
AL600ULACM
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix AL600ULACM Accessory Overview

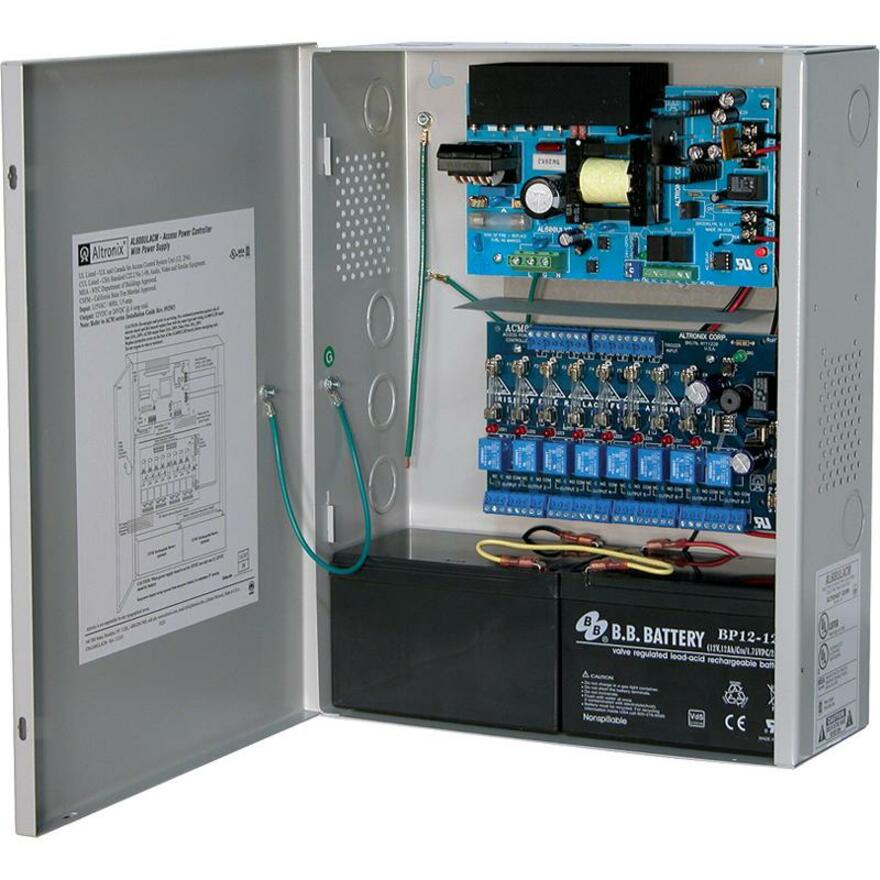

Model AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACMCB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
1.9 A @ 110V
Output Current:
6 A
Physical Characteristics
Form Factor:
Internal
Weight (Approximate):
11.60 lb
Miscellaneous
Compatibility:
Access Power Controller
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0778890614422, 0782239933303, 4703876699144
UPC:
778890614422, 782239933303
EAN:
0778890614422, 0782239933303, 4703876699144
UNSPSC:
39121004
Frequently Asked Questions
What are the main components included in the Elo E347513 PayPoint Plus POS system?
The Elo E347513 PayPoint Plus is a complete POS solution that includes a 15.6" Android-powered touchscreen terminal, a fully integrated 2D barcode scanner from Honeywell, a 3-inch receipt printer from Star Micronics, an encryptable MSR from Magtek, and a full-sized 16-inch cash drawer. This integrated package gives you everything needed to process transactions and manage point-of-sale operations from a single system.
Does the Elo PayPoint Plus have a customer-facing display?
Yes, the Elo E347513 includes a built-in customer-facing display that works in conjunction with the flip-for-signature touchscreen design. This dual-display setup encourages shopper engagement and allows customers to view transaction details and promotional content during checkout.
What operating system does the Elo E347513 run?
The Elo E347513 PayPoint Plus runs Android 7.1 with a projected capacitive touchscreen interface. This Android-based platform provides flexibility for running retail POS applications and integrating with various retail management software solutions.
Can I connect third-party peripherals to the Elo PayPoint Plus?
Yes, the Elo E347513 is designed with connections for third-party peripherals, allowing you to expand functionality beyond the integrated barcode scanner, printer, and MSR. This flexibility makes it easy to add additional devices as your business needs evolve.
What are the memory and storage specifications for the Elo E347513?
The Elo E347513 PayPoint Plus is equipped with 3GB of RAM and 32GB of SSD storage. This configuration provides sufficient performance for running retail POS applications and managing transaction data in typical retail environments.
What payment processing features does the Elo PayPoint Plus offer?
The Elo E347513 includes an encryptable MSR (Magnetic Stripe Reader) from Magtek for secure card payment processing. The integrated barcode scanner and 3-inch printer support product scanning and receipt generation, making it a complete payment and transaction processing solution.
The Altronix AL600ULACM Accessory is also known as
ALT-AL600ULACM
