Altronix AL400ULXB2 Power Device

Part Number: AL400ULXB2
Model: ALTV2416
to get Free Ground Shipping on your order.
$213.66
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of +12V Rails
1
Input Voltage
120 V AC
Output Voltage
12 V DC24 V DC
Output Voltage Detail
12 V DC @ 4 A24 V DC @ 3 A

Product Description:

  Altronix AL400ULXB2 UL Recognized Power Supply/Charger - 120 V AC Input / 12 V DC, 24 V DC - 1 +12V Rails

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL400ULXB2 Power Device Overview

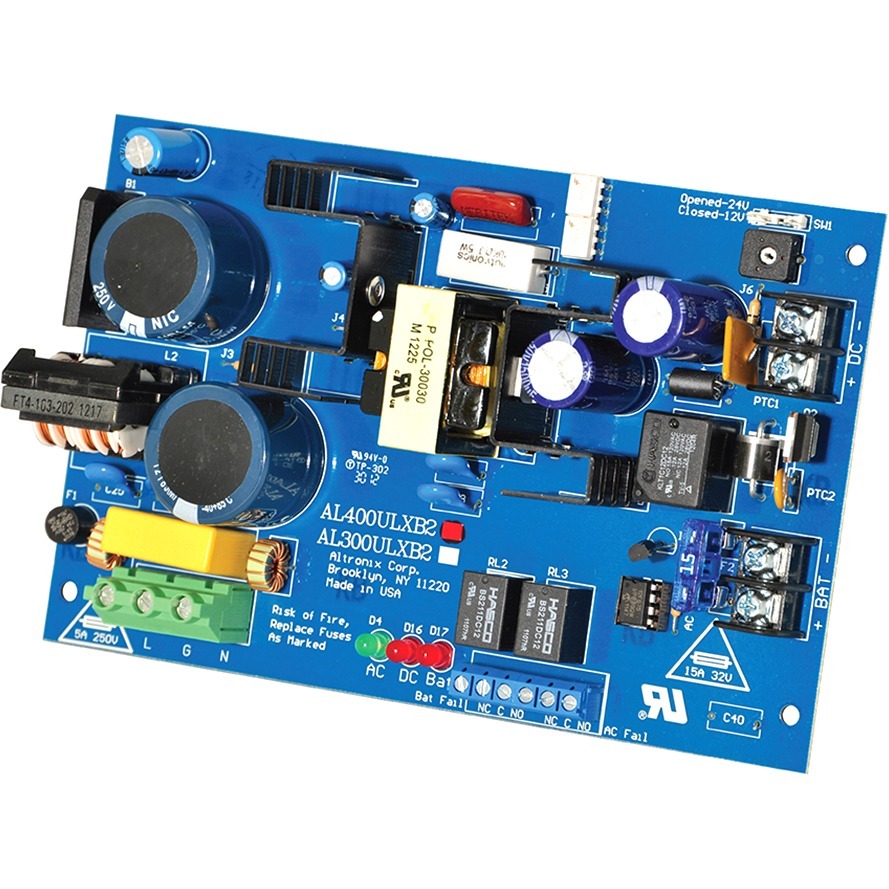

AL400ULXB2 is a UL Recognized power supply/charger which converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.

This model replaces AL400ULXB

Power Description
Number of +12V Rails:
1
Input Voltage:
120 V AC
Output Voltage:
  • 12 V DC
  • 24 V DC
Output Voltage Detail:
  • 12 V DC @ 4 A
  • 24 V DC @ 3 A
Output Current:
  • 4 A
  • 3 A
Physical Characteristics
Form Factor:
Board
Height:
1.4"
Width:
4.5"
Depth:
7.1"
Weight (Approximate):
10.40 oz
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239949311, 0818256468044, 0818273063499
UPC: 782239949311, 818256468044, 818273063499
EAN: 0782239949311, 0818256468044, 0818273063499
UNSPSC: 39121004
