Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

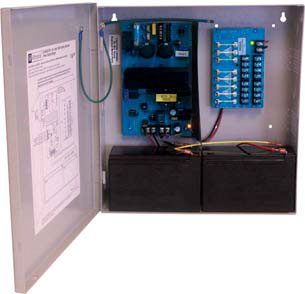

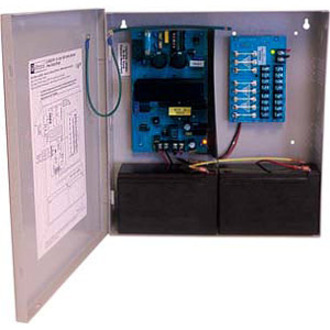

Altronix AL400ULPD8 Power Device
Part Number:
AL400ULPD8
Model:
AL400ULPD8
Altronix AL400ULPD8 Power Device Model Overview
The Altronix AL400ULPD8 Power Supply-Charger converts a 115VAC/60Hz input into eight (8) Class 2 Rated 12VDC or 24VDC power limited outputs. These outputs are filtered and electronically regulated. AL400ULPD8 Power Supply-Charger has short circuit and thermal overload protection. It has a built-in charger for sealed lead acid or gel type batteries. It has a grey enclosure. AL400ULPD8 Power Supply-Charger is UL/CUL listed.
Altronix AL400ULPD8 Power Device Overview
Model AL400ULPD8 power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via eight (8) fuse protected Class 2 Rated power limited outputs. Model AL400ULPD8CB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
1.45 A @ 110V
Output Current:
- 4 A
- 3 A
Physical Characteristics
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
7.60 lb
Miscellaneous
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0013612599961, 0782239936359
UPC:
013612599961, 782239936359
EAN:
0013612599961, 0782239936359
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL400ULPD8 Power Device is also known as
ALT-AL400ULPD8
