Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL400ULPD4CB Power Device
Part Number:
AL400ULPD4CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

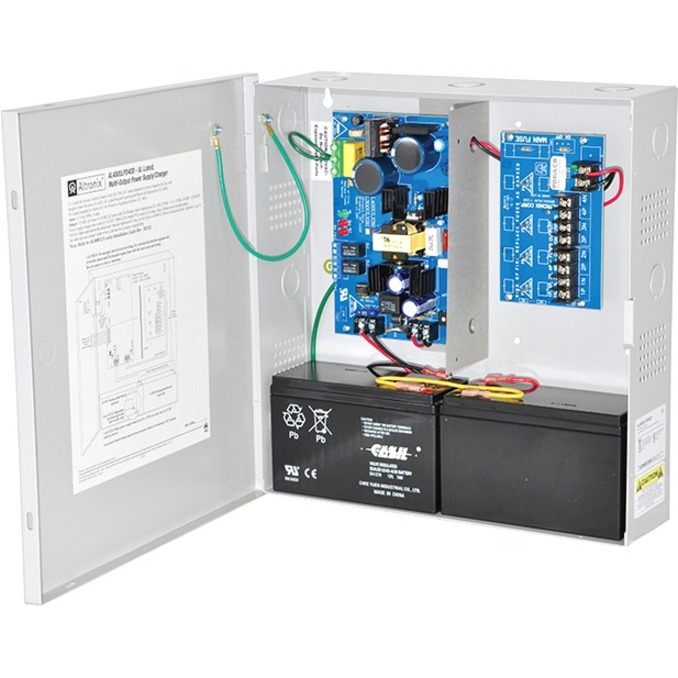

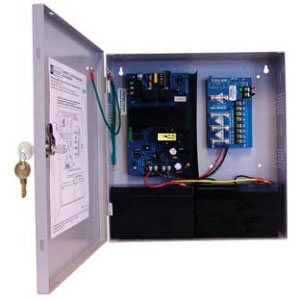

Altronix AL400ULPD4CB Power Device Overview
Model AL400ULPD4CB power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via four (4) PTC protected Class 2 Rated power limited outputs. Model AL400ULPD4 is a fuse protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
4
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
1.45 A @ 110V
Output Current:
- 4 A
- 3 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
7.50 lb
Miscellaneous
Compatibility:
- Access Control Systems
- Burglar Alarm Systems
- Nurse Call Equipments
- Fire Protective Signaling Systems
- Signal Equipments
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937073
UPC:
782239937073
EAN:
0782239937073
UNSPSC:
39121004
