Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

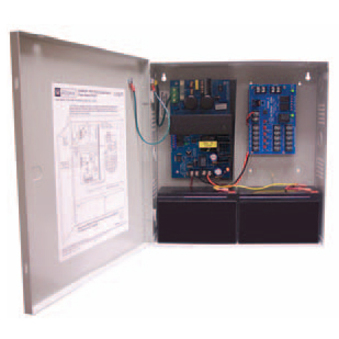

Altronix AL400ULMR Power Device
Part Number:
AL400ULMR
Model:
AL400ULMR
Altronix AL400ULMR Power Device Model Overview
Altronix AL400ULMR Power Supply-Charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC / 60Hz input into five (5) individually protected, class 2-rated, power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc.
Altronix AL400ULMR Power Device Overview
Model AL400ULMR is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an output current of 12VDC @ 4 amp or 24VDC @ 3 amp total. Model AL400ULM is a Grey Cabinet version of this product.
Technical Information
Power Description
Number of +12V Rails:
5
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
1.45 A @ 110V
Output Current:
- 4 A
- 3 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Miscellaneous
Compatibility:
- Access Control Systems and Accessories
- Burglar Alarm Systems
- Nurse Call Equipments
- Fire Protective Signaling Systems
- Signal Equipments
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930418
UPC:
782239930418
EAN:
0782239930418
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL400ULMR Power Device is also known as
ALT-AL400ULMR
