Altronix AL400ULB Power Device

Part Number: AL400ULB
Model: ALTV2416
to get Free Ground Shipping on your order.
$161.09

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Protection Type
Short CircuitThermal Overload
Input Voltage Type
AC
Input Voltage
28 V AC
Output Voltage
12 V DC24 V DC

Product Description:

  Altronix AL400ULB Proprietary Power Supply - 28 V AC Input

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL400ULB Power Device Overview

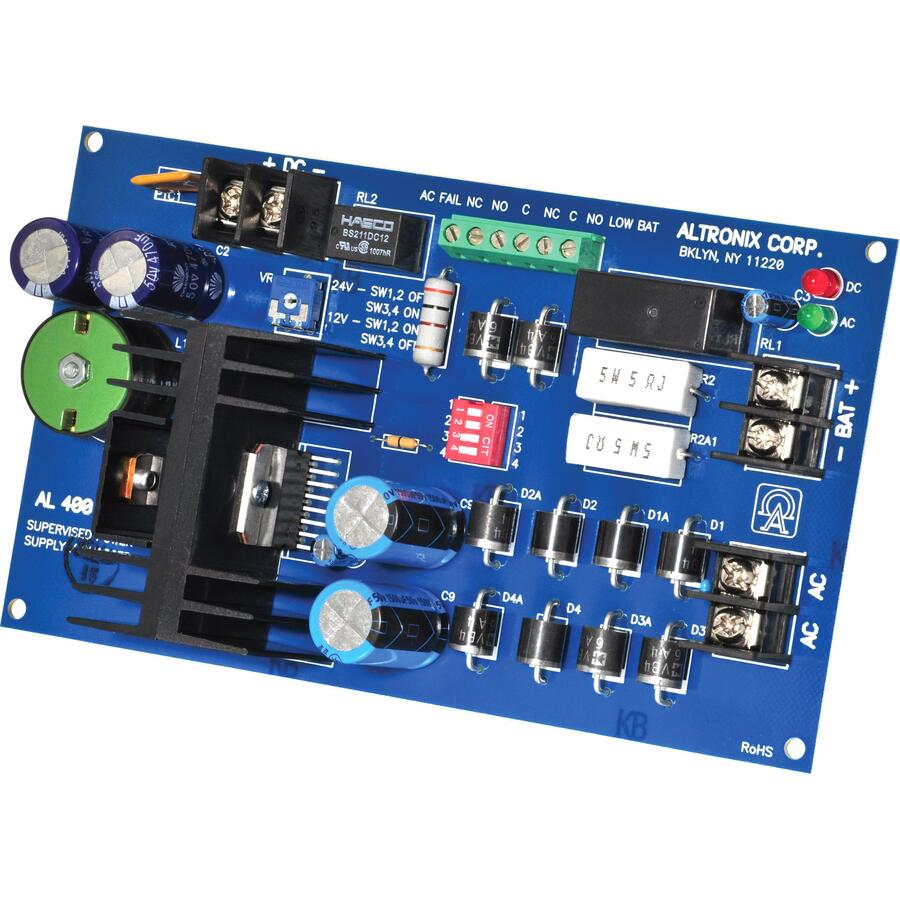

Model AL400ULB power supply/charger converts a 28VAC/100VA input, to 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current output. Class 2 Rated power limited output.

Technical Information
Protection Type:
  • Short Circuit
  • Thermal Overload
Power Description
Input Voltage Type:
AC
Input Voltage:
28 V AC
Output Voltage:
  • 12 V DC
  • 24 V DC
Output Voltage Detail:
  • 12 V DC @ 4 A
  • 24 V DC @ 3 A
Output Current:
  • 4 A
  • 3 A
Physical Characteristics
Height:
1.8"
Width:
4.1"
Depth:
7.1"
Miscellaneous
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239930081, 0818255967319
UPC: 782239930081, 818255967319
EAN: 0782239930081, 0818255967319
UNSPSC: 39121004
