Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL400ULACMCB Accessory
Part Number:
AL400ULACMCB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

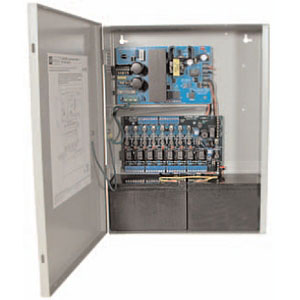

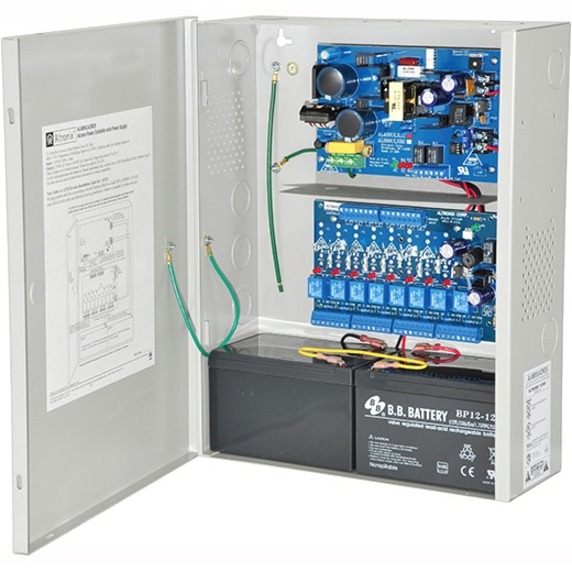

Altronix AL400ULACMCB Accessory Overview
Model AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACM is a fuse protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
1.9 A @ 110V
Output Current:
- 4 A
- 3 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
10.10 lb
Miscellaneous
Compatibility:
- Mag Lock
- Electric Strike
- Magnetic Door Holder
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0683498634546, 0782239932368, 0852228679397, 4703876699113
UPC:
683498634546, 782239932368, 852228679397
EAN:
0683498634546, 0782239932368, 0852228679397, 4703876699113
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL400ULACMCB Accessory is also known as
ALT-AL400ULACMCB
