Altronix AL400ULACM

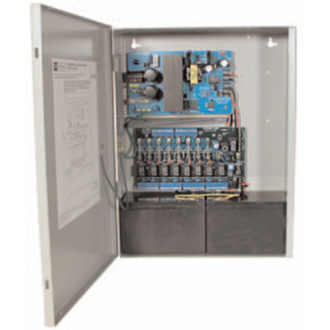

Altronix AL400ULACM Power supply-Charger - 12VDC at 4 AMP or 24VDC at 3 AMP with ACM8, 8 Fused Outputs
$232.20
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Eight (8) independently controlled, fuse protected outputs.

The AL400ULACM Power Supply-Charger converts a 115 VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4 amp @ 12VDC or 3 amp @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. These units will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes.

General Information

  • Product Type: Proprietary Power Supply
  • Brand Name: Altronix
  • Manufacturer: Altronix Corporation
  • Product Model: AL400ULACM
  • Product Name: AL400ULACM Proprietary Power Supply

Technical Information

  • Protection Type:
    • Short Circuit
    • Thermal Overload

Physical Characteristics

  • Height: 15.5"
  • Width: 12.2"
  • Depth: 4.5"
  • Form Factor: Wall Mount
  • Weight (Approximate): 11.10 lb

Power Description

  • Number of +12V Rails: 8
  • Input Voltage Type: AC
  • Input Voltage: 110 V AC
  • Input Current: 1.90 A @ 110V
  • Output Voltage:
    • 12 V DC @ 4 A
    • 24 V DC @ 3 A

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Compatibility:
    • Mag Lock
    • Electric Strike
    • Magnetic Door Holder

Warranty

  • Limited Warranty: Lifetime

Full specifications (PDF)

Full specifications (PDF)

Brand Altronix
Model AL400ULACM Power Supply-Charger


The Altronix AL400ULACM is also known as ALT-AL400ULACM .
