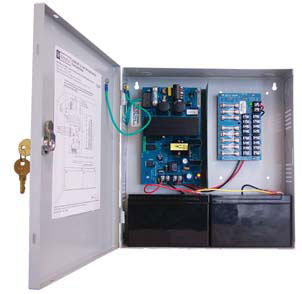

The Altronix AL300ULX Series Power Supply/Charger is an essential solution for your power management needs, converting 115VAC/60Hz input to a reliable 12VDC or 24VDC output with multiple configurations to suit a diverse array of applications. This UL Listed unit is designed to provide exceptional power distribution with options ranging from single to sixteen fused outputs, ensuring a stable power supply for all connected devices. Its robust design includes built-in short circuit and thermal overload protection, automatic battery backup switchover, and supervision features to ensure maximum reliability, making it the preferred choice for security and access control systems.
Key Features:
Model Variants: Available in single, four, eight, or sixteen fused outputs.
Power Selection: 12VDC or 24VDC selectable output.
Battery Backup: Automatic switch over to stand-by battery when AC power fails.
Safety Features: Short circuit and thermal overload protection for enhanced safety.
LED Indicators: Visual indicators for AC and DC status.
Specifications:
Input Voltage: 115VAC / 60Hz, 1.45 amps
Output Rating: 2.5 amps total supply current
Output Type: Filtered and electronically regulated
Battery Compatibility: Sealed lead acid or gel type batteries
Agency Listings: UL listed for various applications, including burglar alarm systems and access control units
Enclosure Dimensions: Varies by model; up to 15.5"H x 12"W x 4.5"D

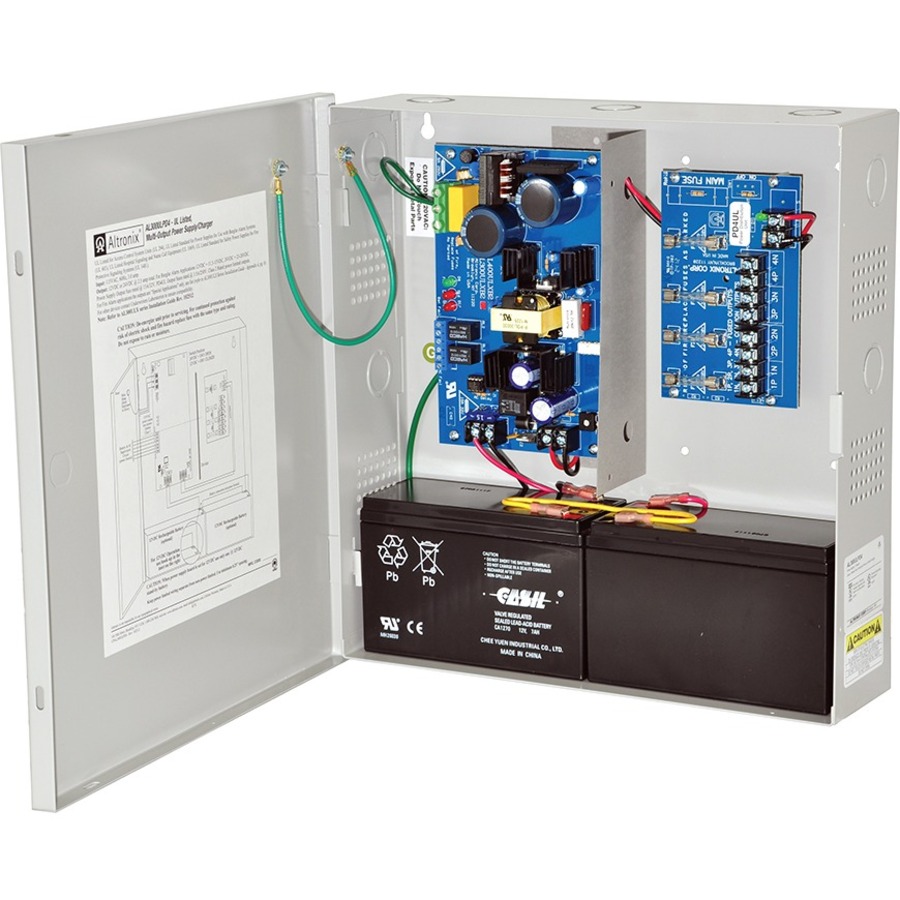

Altronix AL300PD4220 Power Device Overview
AL300PD4220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into four (4) 12VDC or 24VDC outputs.
The Altronix AL300PD4220 Power Device is also known as
ALT-AL300PD4220
