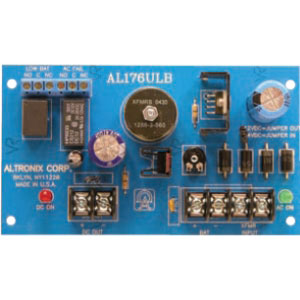

Altronix AL176ULB Power Device

Part Number: AL176ULB
Model: ALTV2416
to get Free Ground Shipping on your order.
$94.74

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Protection Type
Short CircuitThermal Overload
Number of +12V Rails
1
Input Voltage Type
AC
Input Voltage
24 V AC

Product Description:

  Altronix AL176ULB Proprietary Power Supply - 24 V AC Input - 1 +12V Rails

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL176ULB Power Device Overview

Model AL176UL power supply/charger converts a 24VAC/40VA input, to a 1.75 amp of continuous supply current @ 12VDC or 24VDC Class 2 Rated power limited output.

Technical Information
Protection Type:
  • Short Circuit
  • Thermal Overload
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
24 V AC
Output Voltage:
  • 12 V DC
  • 24 V DC
Output Voltage Detail:
  • 12 V DC @ 1.75 A
  • 24 V DC @ 1.75 A
Output Current:
1.75 A
Physical Characteristics
Height:
1.4"
Width:
3.1"
Depth:
5.3"
Miscellaneous
Package Contents:
  • AL176ULB Proprietary Power Supply
  • Battery Leads
Compatibility:

Access Control Systems

Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239934577
UPC: 782239934577
EAN: 0782239934577
UNSPSC: 39121004
