Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL175ULX Power Device
Part Number:
AL175ULX
Model:
AL175ULX
Altronix AL175ULX Power Device Model Overview

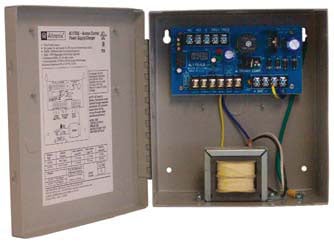

The Altronix AL175UL and AL175ULX multi-output power supply/chargers provide reliable, power-limited 12 VDC or 24 VDC for security and access control systems. They feature short-circuit and thermal overload protection with automatic switchover to standby batteries during AC failure. The AL175ULX includes a larger enclosure for added installation space.
Key Features
- Selectable output: 12 VDC or 24 VDC
- Continuous current: 1.75 A
- Class 2 rated, power-limited outputs
- Filtered, electronically regulated output
- Automatic switchover to standby battery on AC loss
Specifications
- Model options:
- AL175UL: 5.2 lb (shipping: 5.7 lb)
- AL175ULX: 8.4 lb (shipping: 9.4 lb)
- Charge current: up to 400 mA
- AC fail supervision: Form “C” contacts
- LED indicators: AC input and DC output
- Enclosure dimensions: 8.5" × 7.5" × 3.75"
- Agency approvals:
- UL 294 (Access Control System Units)
- MEA Approved; NYC Department of Buildings Approved
- cUL Listed — CSA C22.2 No. 205-M1983 (Signal Equipment)
- California State Fire Marshal Approved
Altronix AL175ULX Power Device Overview

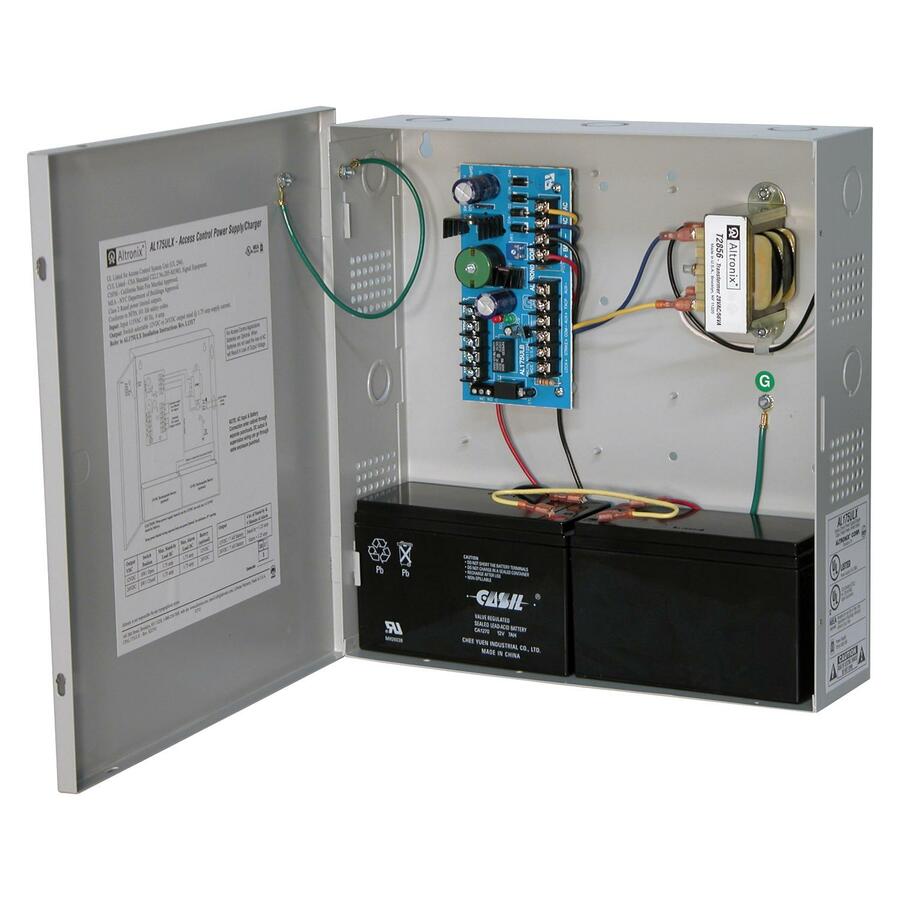

The AL175ULX is a power limited power supply/charger that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC outputs, (see specifications). It is intended for use in applications requiring UL Listing for Access Control System Units (UL 294) and applications requiring an interface with Fire Alarm Control Panels.
Technical Information
Power Description
Number of +12V Rails:
2
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC @ 1.75 A
- 24 V DC @ 1.75 A
Input Current:
600 mA @ 110V
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
8.90 lb
Miscellaneous
Compatibility:
- Access Control System
- Signal Equipment
- Fire Alarm Control Panel
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239932009, 4003426302532
UPC:
782239932009
EAN:
0782239932009, 4003426302532
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL175ULX Power Device is also known as
ALT-AL175ULX
