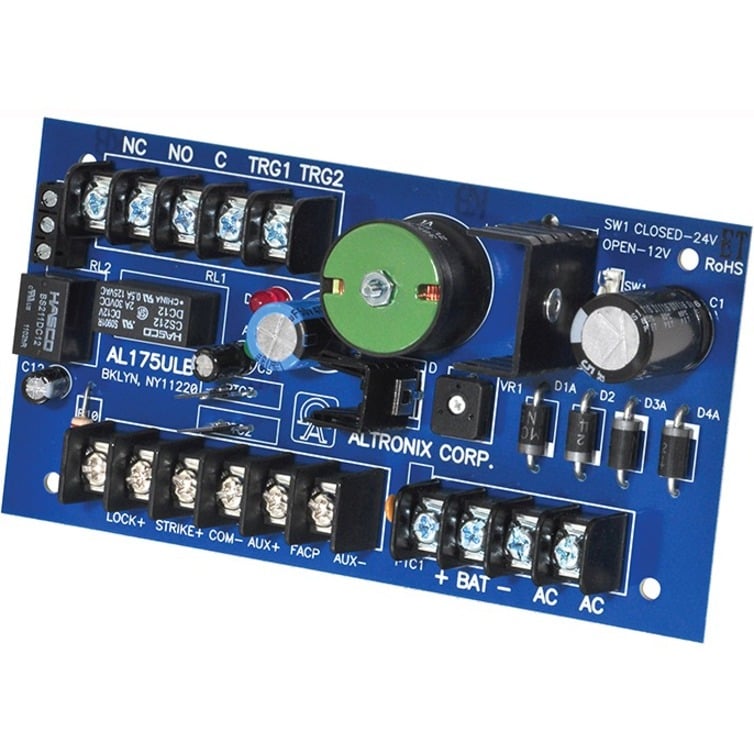

Altronix AL175ULB Power Device

The Altronix AL175UL and AL175ULX multi-output power supply/chargers provide reliable, power-limited 12 VDC or 24 VDC for security and access control systems. They feature short-circuit and thermal overload protection with automatic switchover to standby batteries during AC failure. The AL175ULX includes a larger enclosure for added installation space.

Key Features

• Selectable output: 12 VDC or 24 VDC
• Continuous current: 1.75 A
• Class 2 rated, power-limited outputs
• Filtered, electronically regulated output
• Automatic switchover to standby battery on AC loss

Specifications

• Model options:
  • AL175UL: 5.2 lb (shipping: 5.7 lb)
  • AL175ULX: 8.4 lb (shipping: 9.4 lb)
• Charge current: up to 400 mA
• AC fail supervision: Form “C” contacts
• LED indicators: AC input and DC output
• Enclosure dimensions: 8.5" × 7.5" × 3.75"
• Agency approvals:
  • UL 294 (Access Control System Units)
  • MEA Approved; NYC Department of Buildings Approved
  • cUL Listed — CSA C22.2 No. 205-M1983 (Signal Equipment)
  • California State Fire Marshal Approved
