Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL175UL Power Device
Part Number:
AL175UL
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

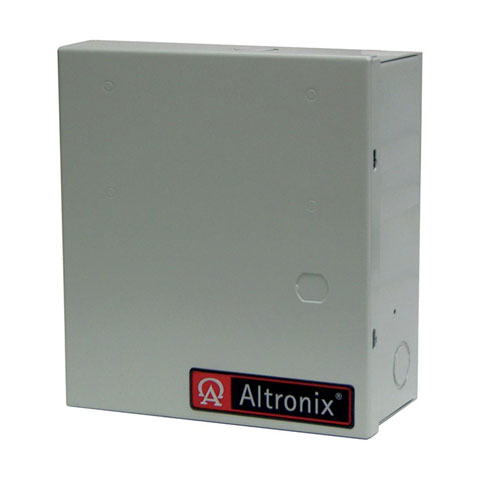

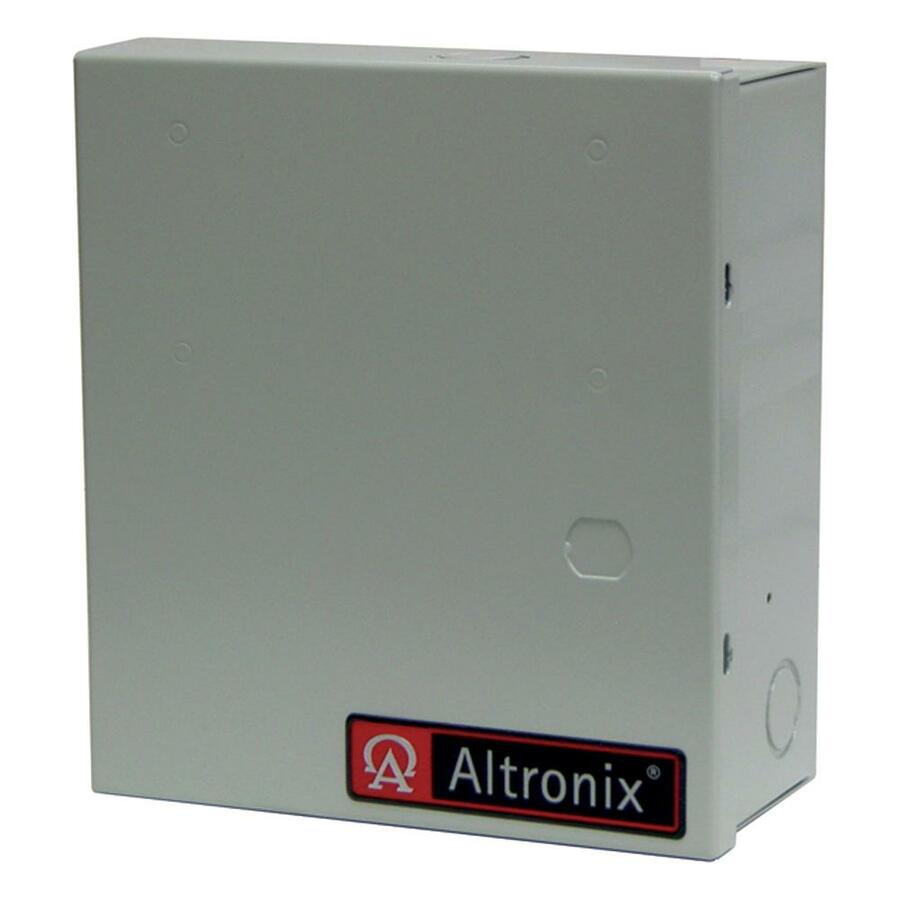

Altronix AL175UL Power Device Overview
AL175UL is a power limited power supply/chargers that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC output, (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels. It must be installed in accordance with National and Local Electrical Codes and Regulations.
Technical Information
Power Description
Number of +12V Rails:
2
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 1.75 A
- 24 V DC @ 1.75 A
Input Current:
600 mA @ 110V
Output Current:
1.75 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
5.60 lb
Miscellaneous
Compatibility:
- Access Control System
- Signal Equipment
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930234, 4703876699052
UPC:
782239930234
EAN:
0782239930234, 4703876699052
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL175UL Power Device is also known as
ALT-AL175UL
