Protection Type:
- Surge
- PTC
Altronix AL168600CB Accessory
Part Number:
AL168600CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL168600CB Accessory Overview

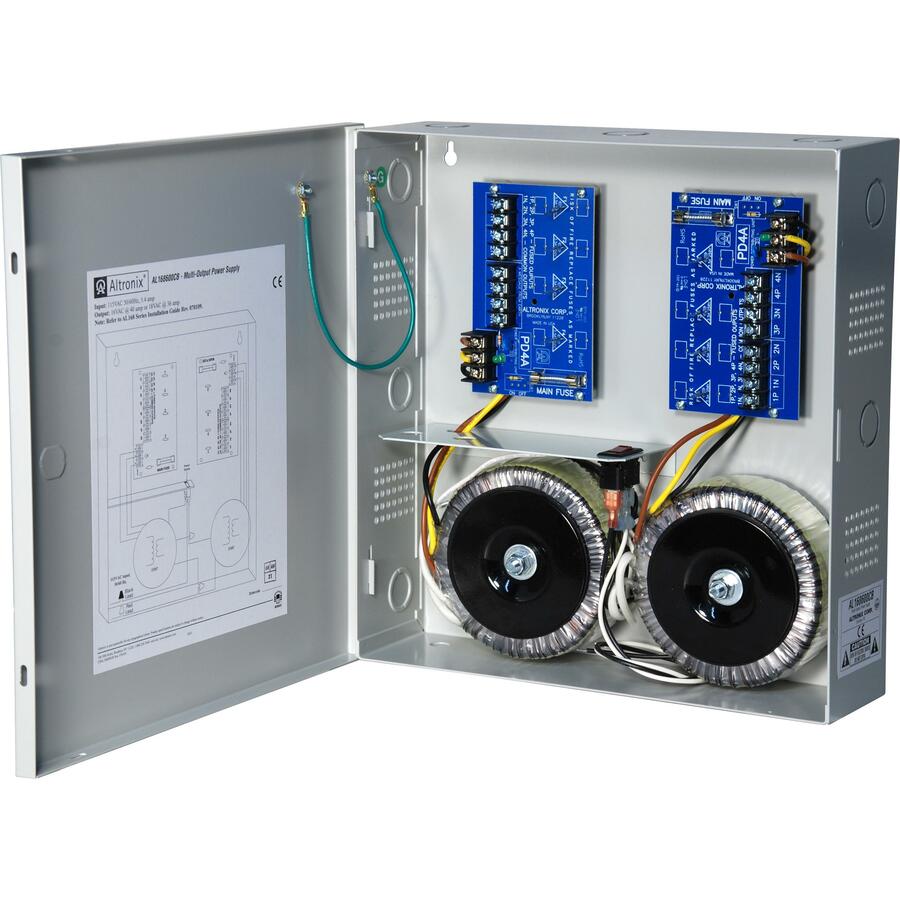

This Altronix Multi-Output Power Supply provides 16VAC/18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 16 V AC
- 18 V AC
Output Voltage Detail:
- 16 V AC @ 40 A
- 18 V AC @ 36 A
Input Current:
5.4 A @ 110V
Output Current:
- 40 A
- 36 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
25.30 lb
Miscellaneous
Compatibility:
- Security Systems
- Access Control Panels
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239942718
UPC:
782239942718
EAN:
0782239942718
UNSPSC:
39121004
