Protection Type:
- Fuse
- Surge
- PTC

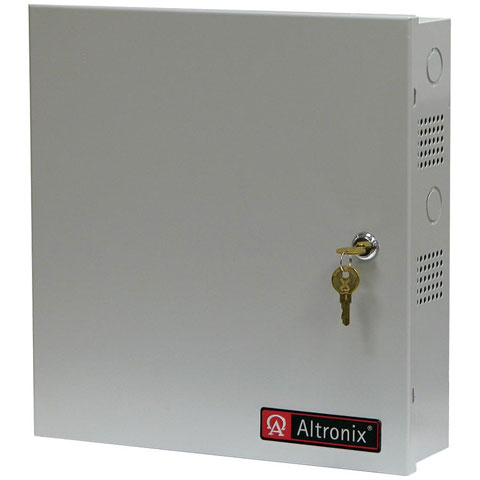

Altronix AL168300CB Power Device
Part Number:
AL168300CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL168300CB Power Device Overview
This Altronix Multi-Output Power Supply provides 16VAC/18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 16 V AC
- 18 V AC
Output Voltage Detail:
- 16 V AC @ 18 A
- 18 V AC @ 16 A
Input Current:
2.7 A @ 110V
Output Current:
- 18 A
- 16 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
11.40 lb
Miscellaneous
Compatibility:
- Security Systems
- Access Control Panels
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239940486, 4703876699045
UPC:
782239940486
EAN:
0782239940486, 4703876699045
UNSPSC:
39121004
