Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

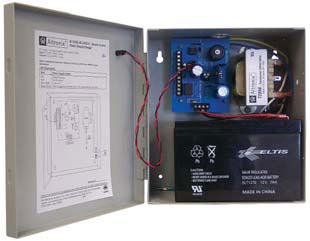

Altronix AL125UL Power Device
Part Number:
AL125UL
Model:
AL125UL
Altronix AL125UL Power Device Model Overview
The Altronix AL125UL series Access Control Power Supply/Chargers are robust solutions tailored for Access Control applications, converting 115VAC into dual PTC protected 12VDC or 24VDC outputs. Designed to comply with UL294 listings, these systems are perfect for integrating with Fire Alarm Control Panels while ensuring reliable operation. With built-in battery backup and a user-friendly front panel, the AL125UL series guarantees continuous power even during outages, making it a vital component for security applications.
Key Features:
- Dual Power Outputs: Two individual 12VDC or 24VDC outputs with up to 1 amp supply current.
- Built-in Battery Backup: Automatically switches to stand-by battery during AC failure.
- Indicator Lights: Front panel status indicators for easy monitoring.
- Fire Alarm Interface: Supervised connections for Fire Alarm Control Panels.
Specifications:
- Input:
- AL125UL, AL125ULX - 115VAC 50/60Hz, 0.6 amp
- AL125ULP, AL125ULE - 24VAC @ 40VA
- Output:
- 12VDC/24VDC class 2 rated outputs
- 1A total supply @ 12VDC or 24VDC (AL125UL & AL125ULX)
- 1A @ 12VDC, 0.5A @ 24VDC (AL125ULP & AL125ULE)
- Dimensions:
- AL125UL, AL125ULE, AL125ULP - 8.5"H x 7.5"W x 3.5"D
- AL125ULX - 13"H x 13.5"W x 3.25"D
Altronix AL125UL Power Device Overview
AL125UL, AL125ULX, AL125ULP are Power Limited Power Supply/Chargers that will convert 115VAC 50/60Hz input, into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 1 A
- 24 V DC @ 1 A
Input Current:
600 mA @ 110V
Output Current:
1 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
5.10 lb
Miscellaneous
Compatibility:
Fire Alarm Control Panels
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936885
UPC:
782239936885
EAN:
0782239936885
UNSPSC:
39121004
