Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL1042ULADA Power Device
Part Number:
AL1042ULADA
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

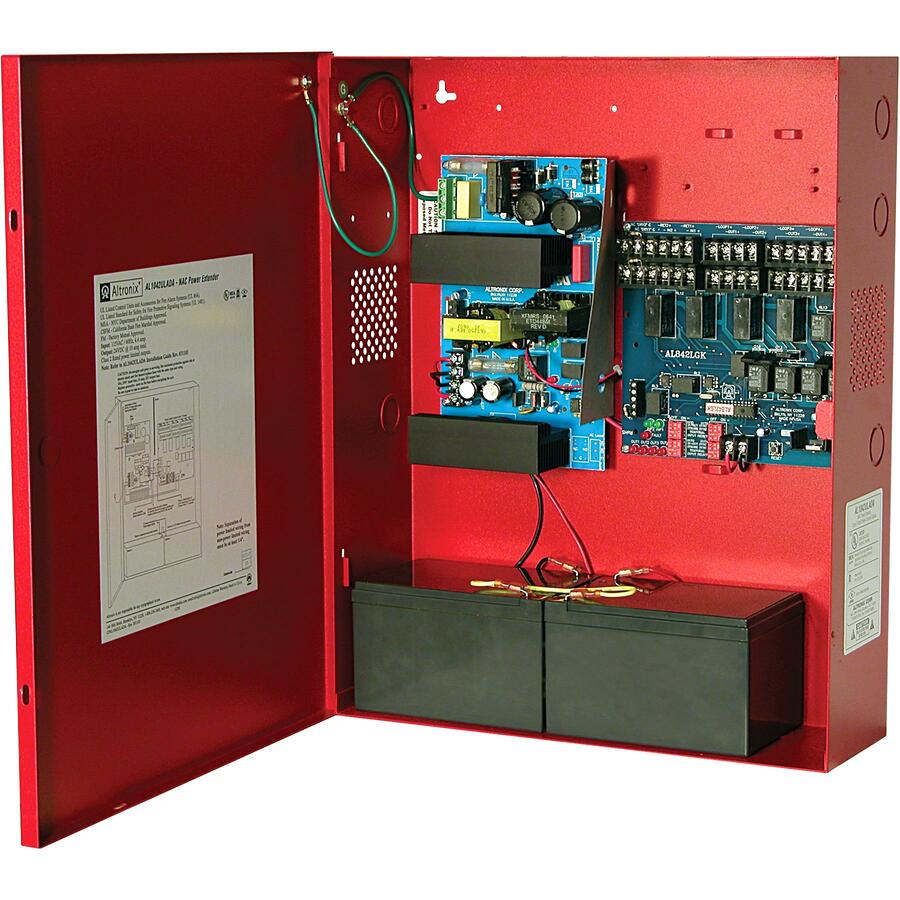

Altronix AL1042ULADA Power Device Overview
The AL642ULADA, AL842ULADA and AL1042ULADA are extremely cost effective voltage regulated remote NAC Power Extenders. They may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and will provide auxiliary power to support system accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Input Current:
5 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
18"
Width:
14.5"
Depth:
4.6"
Weight (Approximate):
12.80 lb
Miscellaneous
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937202
UPC:
782239937202
EAN:
0782239937202
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1042ULADA Power Device is also known as
ALT-AL1042ULADA
