Protection Type:
- Short Circuit
- Overload
Altronix AL1024X220 Power Device
Part Number:
AL1024X220
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

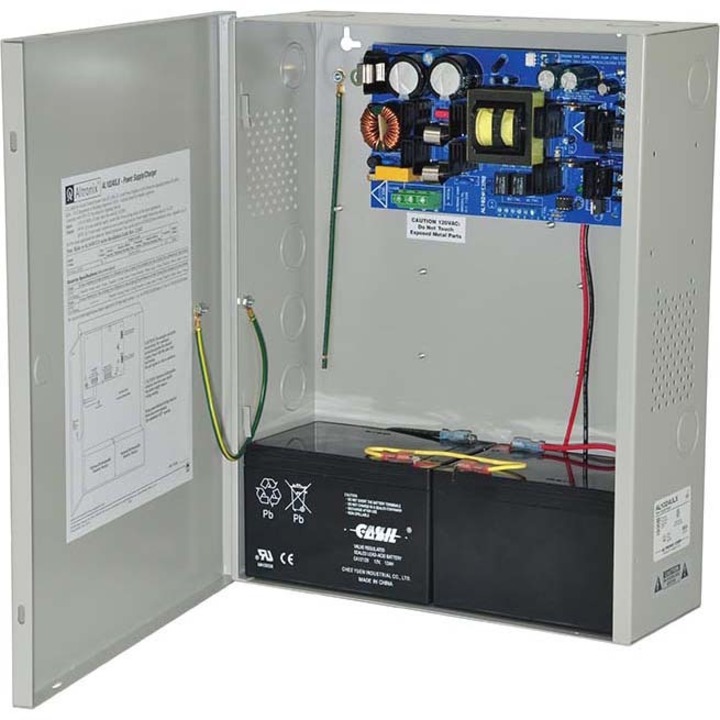

Altronix AL1024X220 Power Device Overview
AL1024X220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 24VDC non-power limited output.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
220 V AC
Input Voltage Range:
205 V AC - 250 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
- 24 V DC @ 8 A
- 24 V DC @ 10 A
Output Current:
- 8 A
- 10 A
Controls/Indicators
Status Indicators:
- AC Input LED
- DC Output LED
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.3"
Depth:
4.5"
Weight (Approximate):
10.10 lb
Miscellaneous
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
The Altronix AL1024X220 Power Device is also known as
ALT-AL1024X220
