Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL1024ULX Power Device
Part Number:
AL1024ULX
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

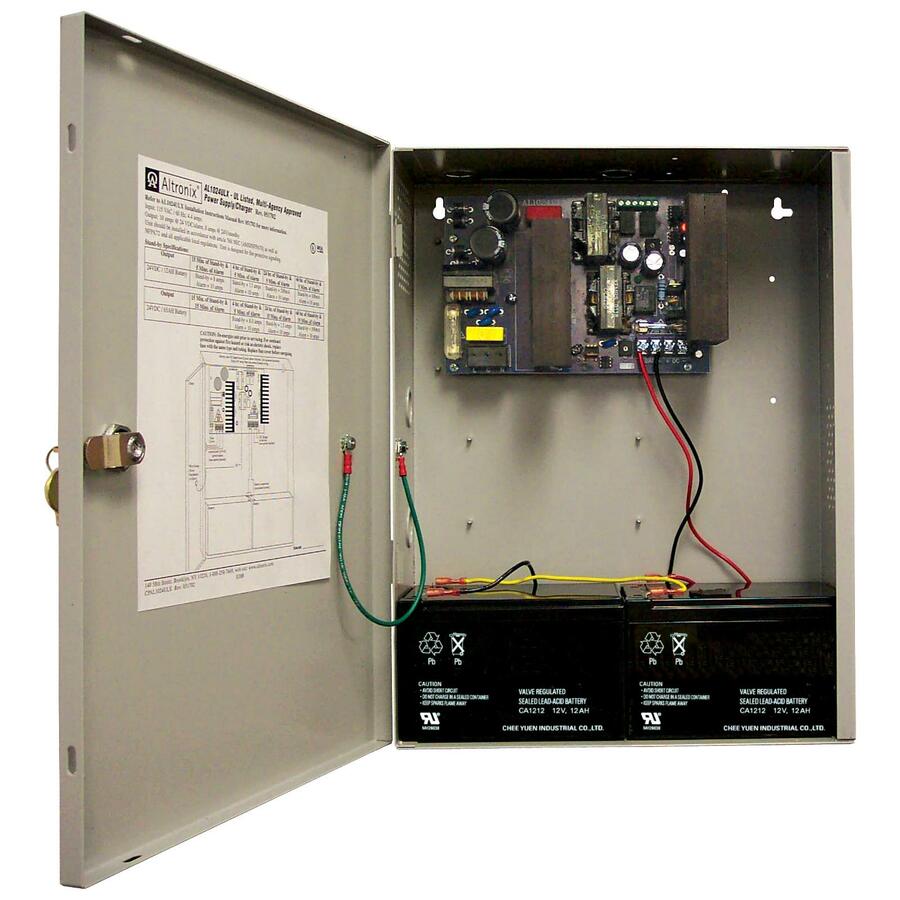

Altronix AL1024ULX Power Device Overview
Model AL1024ULX power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Input Current:
4.4 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
10.10 lb
Miscellaneous
Compatibility:
Fire Alarm Applications
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936144, 4703876698994
UPC:
782239936144
EAN:
0782239936144, 4703876698994
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1024ULX Power Device is also known as
ALT-AL1024ULX
