Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL1024ULACMCB Accessory
Part Number:
AL1024ULACMCB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL1024ULACMCB Accessory Overview

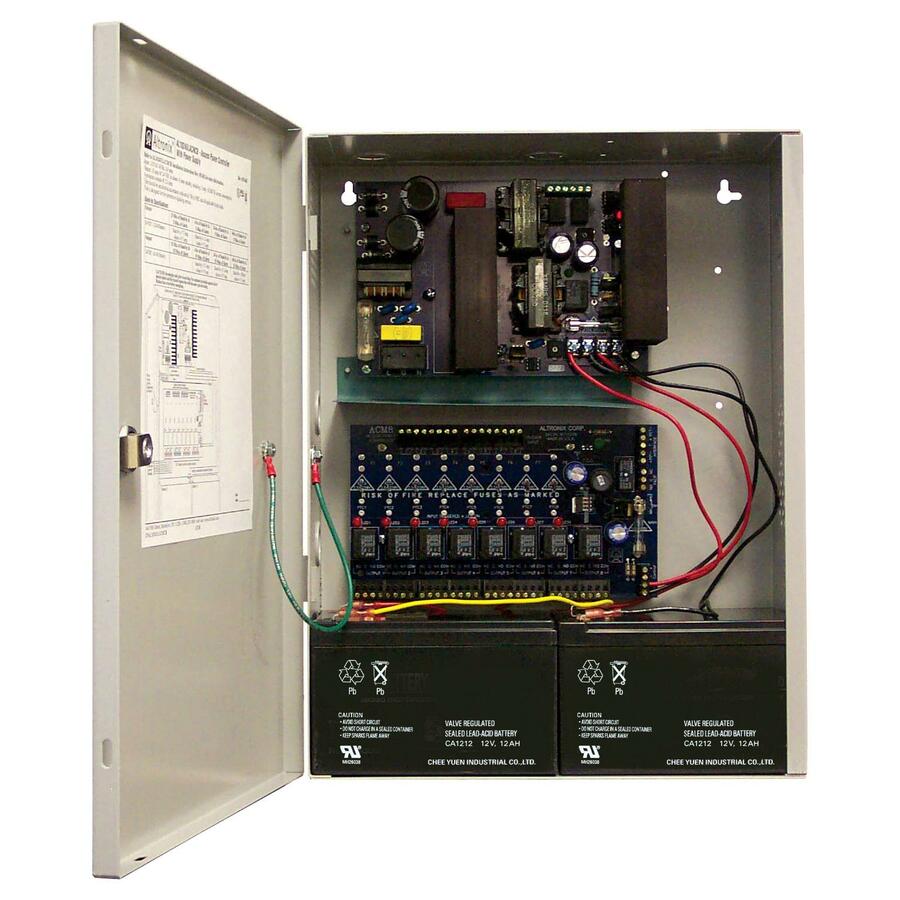

Model AL1024ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1024ULACM is a fuse protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Input Current:
4.4 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
11.75 lb
Miscellaneous
Compatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936106
UPC:
782239936106
EAN:
0782239936106
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1024ULACMCB Accessory is also known as
ALT-AL1024ULACMCB
