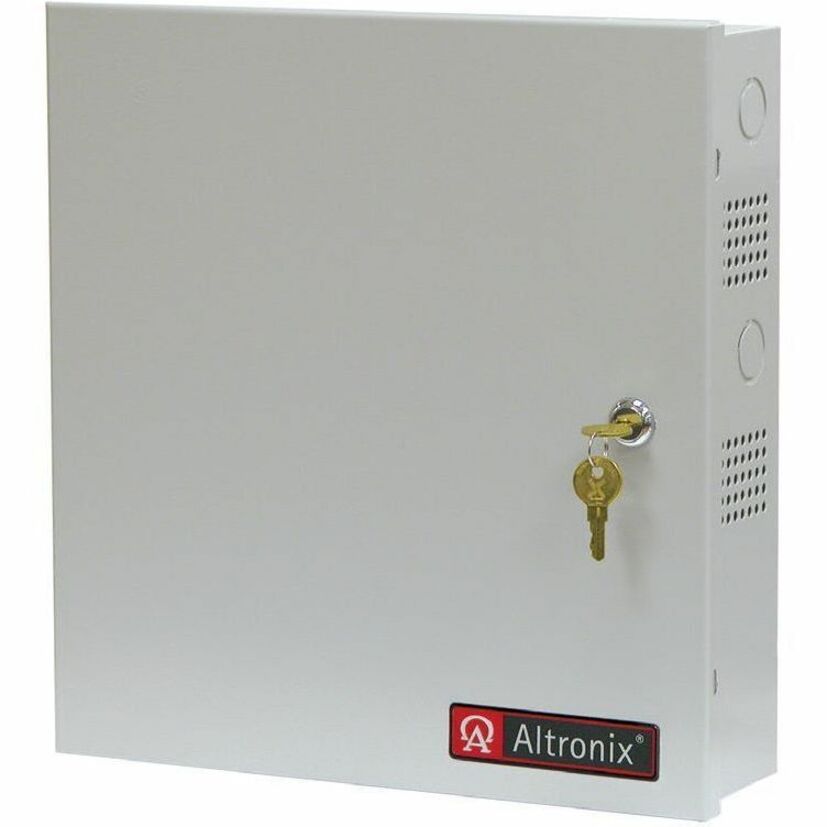

Altronix AL1024NK1 Power Device

Part Number: AL1024NK1
Model: Parts
Add to My Shopping List Add to Compare
$467.30

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of +12V Rails
1
Output Voltage
5 V DC12 V DC24 V DC
Output Voltage Detail
5 V DC @ 6 A12 V DC @ 6 A24 V DC @ 10 A
Output Current
6 A10 A

Product Description:

  Power Systems & Supplies, Altronix, Power supply/Charger and VR6 - 24VDC @ 10A max. plus 12VDC @ up to 6A, AC & battery monitoring, encl. 13"W x 13.5"H x 3.25"D accomodates up to (2) 12VDC/7AH batteries.
Explore all Altronix Parts Accessories
Add to Quote
Altronix AL1024NK1 Power Device
Altronix AL1024NK1 Power Device
Altronix AL1024NK1 Power Device Altronix AL1024NK1 Power Device

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix AL1024NK1 Power Device Overview

Altronix AL1024NK1 dual output power supply/charger kit converts a 115VAC, 60Hz input into one (1) 5VDC or 12VDC selectable output at up to 6A supply current and one (1) 24VDC output. It also offers a suite of features that includes overvoltage protection, AC fail supervision, low battery supervision and battery presence supervision.

Power Description
Number of +12V Rails:
1
Output Voltage:
  • 5 V DC
  • 12 V DC
  • 24 V DC
Output Voltage Detail:
  • 5 V DC @ 6 A
  • 12 V DC @ 6 A
  • 24 V DC @ 10 A
Output Current:
  • 6 A
  • 10 A
Physical Characteristics
Form Factor:
Enclosure
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
6.90 lb
Miscellaneous
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 39121004
