Protection Type:
- PTC
- Short Circuit
- Thermal Overload
Altronix AL1012ULXPD8CB Power Device
Part Number:
AL1012ULXPD8CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL1012ULXPD8CB Power Device Overview

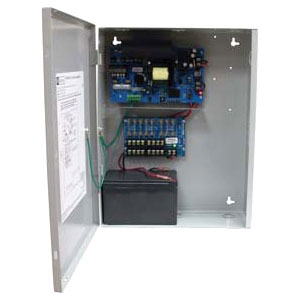

Model AL1012ULXPD8CB power supply/charger converts a 115VAC 60Hz input, to 10 amp of continuous supply current @ 12VDC distributed via eight (8) PTC protected Class 2 Rated outputs. Model AL1012ULXPD8 is a fuse protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 10 A
Input Current:
1.9 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
11.20 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936656, 4703876698970
UPC:
782239936656
EAN:
0782239936656, 4703876698970
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1012ULXPD8CB Power Device is also known as
ALT-AL1012ULXPD8CB
