Protection Type:
- Surge
- Short Circuit
- Thermal Overload
Altronix AL1012ULXPD16 Accessory
Part Number:
AL1012ULXPD16
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL1012ULXPD16 Accessory Overview

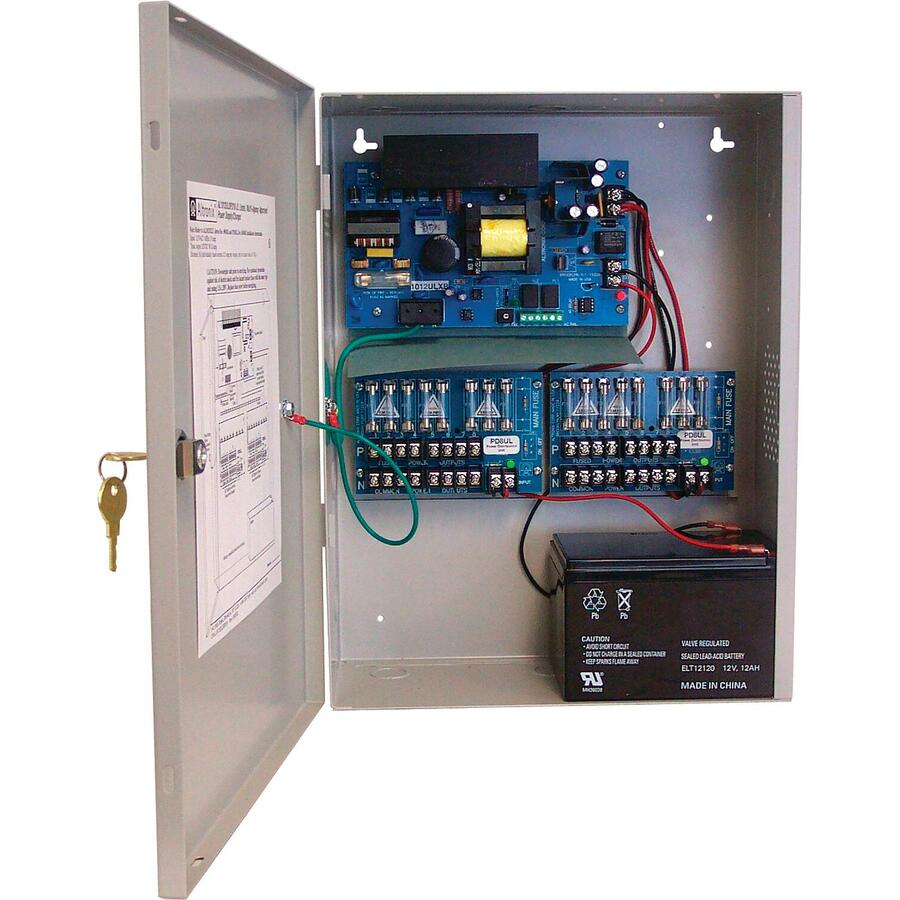

Model AL1012ULXPD16 power supply/charger converts a 115VAC 60Hz input, 10 amp @ 12VDC distributed via sixteen (16) fuse protected non power limited outputs. Model AL1012ULXPD16CB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 10 A
Input Current:
1.9 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
11.20 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0683498634393, 0782239936663
UPC:
683498634393, 782239936663
EAN:
0683498634393, 0782239936663
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1012ULXPD16 Accessory is also known as
ALT-AL1012ULXPD16
