Protection Type:
- Short Circuit
- Thermal Overload
Altronix AL1012ULXB Accessory
Part Number:
AL1012ULXB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

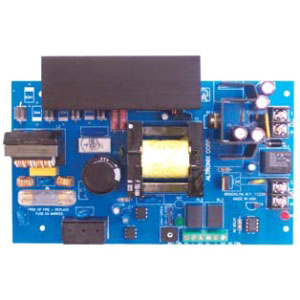

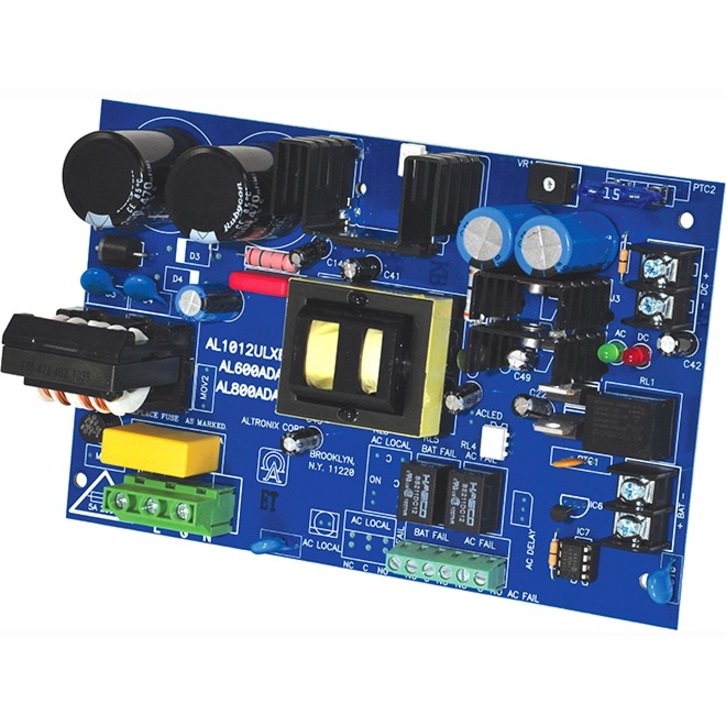

Altronix AL1012ULXB Accessory Overview
Model AL1012ULXB power supply/charger converts a 115VAC 60Hz input, to 10 amp of continuous supply current @ 12VDC non-power limited output.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 10 A
Input Current:
1.9 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
Board
Height:
2.3"
Width:
4.5"
Depth:
7.5"
Weight (Approximate):
9.30 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239932689, 0818256018607, 4892929368080
UPC:
782239932689, 818256018607
EAN:
0782239932689, 0818256018607, 4892929368080
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1012ULXB Accessory is also known as
ALT-AL1012ULXB
