Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

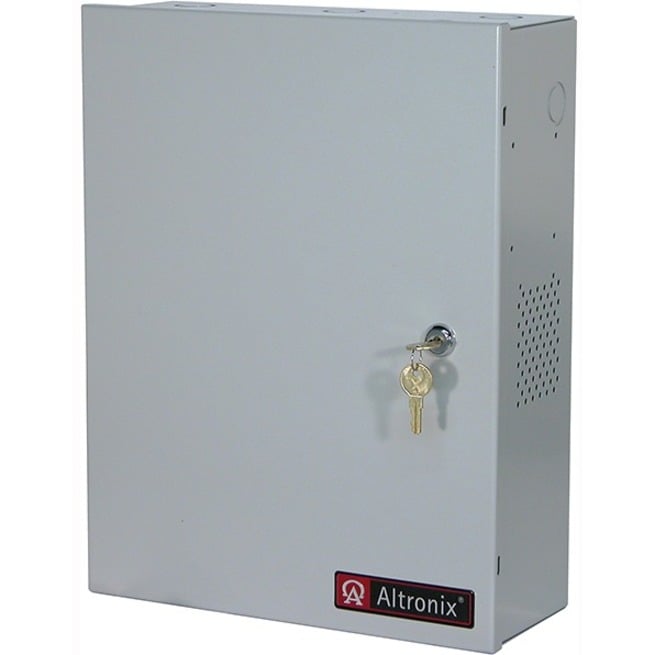

Altronix AL1012ULACM Power Device
Part Number:
AL1012ULACM
Model:
AL1012ULACM
Altronix AL1012ULACM Power Device Model Overview
The Altronix AL1012ULACM and AL1012ULACMCB are advanced power supply/chargers designed for access control systems, converting 115VAC 60Hz input into eight independently controlled 12VDC outputs, with a total continuous supply of 10 amps. These versatile units can accommodate various access control devices, including mag locks and electric strikes, and offer Fail-Safe and Fail-Secure operation modes. With integrated fire alarm disconnect features and potential for dual power sources, these systems provide reliable functionality for commercial security applications, ensuring safety and peace of mind.
Key features:
Specifications:
Key features:
- Eight (8) independently controlled outputs, supporting Fail-Safe and Fail-Secure modes.
- Automatic battery backup with zero voltage drop during switch over.
- FACP interface for emergency egress and alarm monitoring.
- Short circuit and thermal overload protection for enhanced reliability.
- Red LED indicators for output status.
Specifications:
- General:
- Input: 115VAC 60Hz @ 1.9 amps.
- Power supply output: 12VDC @ 10 amps.
- Product weight: AL1012ULACM - 10.2 lbs, AL1012ULACMCB - 9.8 lbs.
- Outputs:
- Eight (8) fuse protected outputs.
- Power output ratings: Fuses rated @ 3.5 amps (AL1012ULACM), PTCs rated @ 2.5 amps (AL1012ULACMCB).
- Fire Alarm Features:
- Individually selectable fire alarm disconnect for any or all outputs.
- Alarm output relay (form 'C' contact).
- Green LED indicates FACP disconnect status.
- Enclosure Dimensions:
- 15.5" H x 12" W x 4.5" D.
Altronix AL1012ULACM Power Device Overview
Model AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1012ULACMCB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
12 V DC
Input Current:
1.9 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
10.20 lb
Miscellaneous
Compatibility:
- Card Reader
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239934041, 4703876698918
UPC:
782239934041
EAN:
0782239934041, 4703876698918
UNSPSC:
39121004
