Altronix AL1002ULADA Accessory

Altronix ALTV2416 - Altronix AL1002ULADA Proprietary Power Supply - Wall Mount - 110 V AC Input
  • NAC Power Extender.
  • 24VDC @ 10A. 2 Class A or 4 Class B NAC circuits.
  • Operates 2-wire Horn/Strobes, generates Cooper/Wheelock, System Sensor, Gentex, Faraday and Amseco sync protocols.
  • 1A aux. output with battery backup.
  • UL listed.
Read More

Need a different version? See all Altronix ALTV2416 Accessories

$576.45
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Altronix AL1002ULADA Accessory
Altronix AL1002ULADA Accessory Altronix AL1002ULADA Accessory Altronix AL1002ULADA Accessory
Altronix AL1002ULADA Accessory
Altronix AL1002ULADA Accessory
Altronix AL1002ULADA Accessory
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix AL1002ULADA Accessory Overview

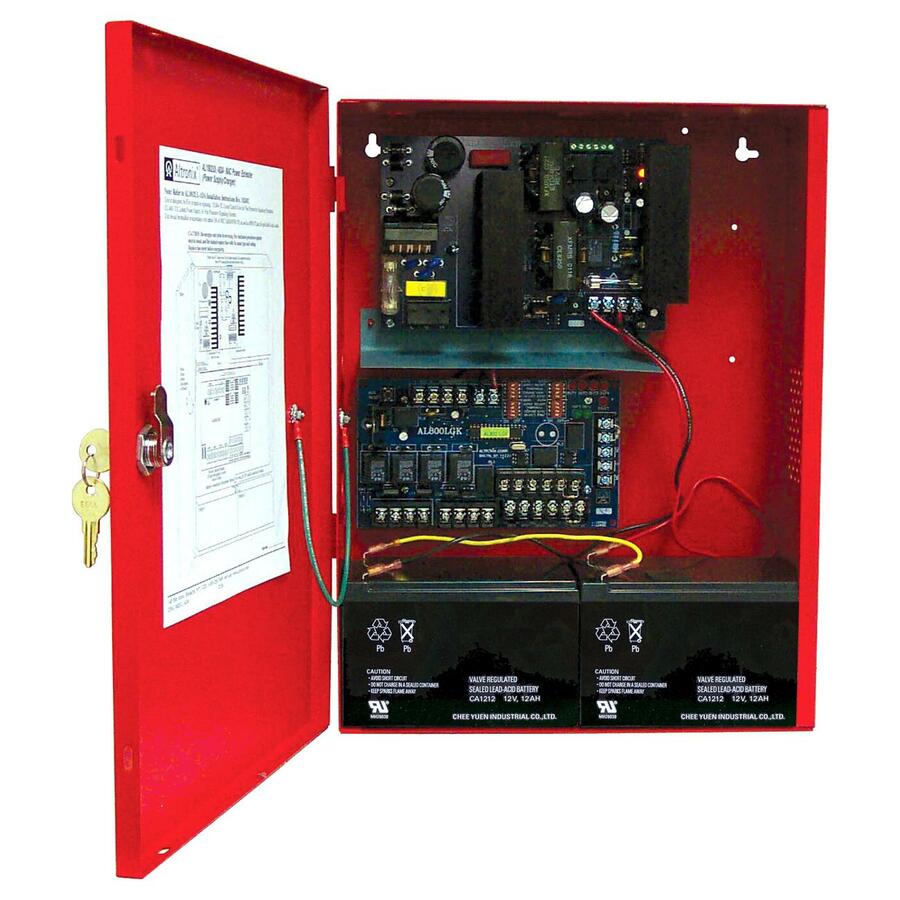

Altronix AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Technical Information
Protection Type:
  • Thermal Overload
  • Short Circuit
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC @ 10 A
Input Current:
5 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
13.30 lb
Miscellaneous
Compatibility:

Fire Alarm Control Panel

Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239935826, 4703876698895
UPC: 782239935826
EAN: 0782239935826, 4703876698895
UNSPSC: 39121004
