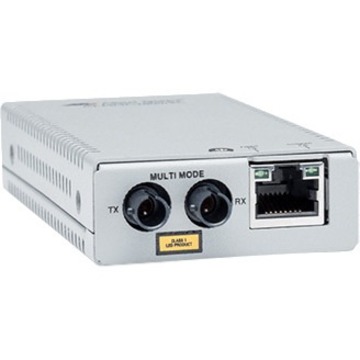

Allied Telesis AT-MMC2000/ST-960 Data Networking

Allied Telesis - Allied Telesis MMC2000/ST Transceiver/Media Converter, 1 x Network (RJ-45), 1 x ST Ports, Multi-mode, Gigabit Ethernet, 10/100/1000Base-T, 1000Base-SX, 1640.42 ft, AC Adapter, Wall Mountable, Rack-mountable, TAA Compliant
  • Convert speed as well as media type
  • 2K MAC address tables
  • Store-and-forward switching mode
  • Transparent to IEEE 802.1Q packets
  • Auto Negotiation and Auto MDI/MDIX on copper port
  • IEEE support on copper
  • Far End Fault on Fiber
  • 10K byte Jumbo packets
  • Link/Activity LED per port
  • Smart MissingLink
Read More
$442.78
Add to Quote
Allied Telesis Parts Security Equipment Model Overview
Parts and products from Allied Telesis.
Allied Telesis AT-MMC2000/ST-960 Data Networking Overview

The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.

Extend Networks

The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).

VLAN Support

Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.

Small and Flexible

The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.

Smart MissingLink (SML)

The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.

Smart Link Restoration

Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.

Power Saving

The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.

Link Test

The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.

Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Number of ST Ports:
1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
850 nm
Maximum Distance Supported:
1640.42 ft
Fiber Optic Cable Standard:
  • 50/125 µm
  • 62.5/125 µm
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-SX
Power Description
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rack-mountable
Height:
0.9"
Width:
2.2"
Depth:
4"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • MMC2000/ST Transceiver/Media Converter
  • AC Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
  • WEEE
Country of Origin:
Singapore
TAA Compliant:
Yes
Item Numbers
GTIN: 0767035218625
UPC: 767035218625
EAN: 0767035218625
UNSPSC: 43201553
