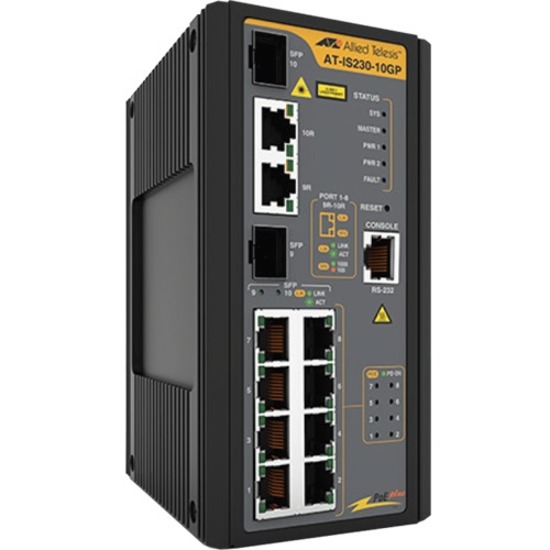

Allied Telesis AT-IS230-10GP-80 Data Networking

The Allied Telesis AT-IS230-10GP-80 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Allied Telesis - Allied Telesis Industrial Managed Layer 2 Switch, 8 Ports, Manageable, 2 Layer Supported, Modular, 2 SFP Slots, Optical Fiber, Twisted Pair, DIN Rail Mountable, Wall Mountable
  • Effectively increases available bandwidth on your network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • DIN Rail Mountable form factor for your convenience and simplicity of usage
  • Management capability provides control over setup and configuration of your network
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Optical Fiber media support for a dependable and productive connectivity
Read More
Allied Telesis Parts Security Equipment Model Overview
Parts and products from Allied Telesis.
Allied Telesis AT-IS230-10GP-80 Data Networking Overview
The Allied Telesis IS230 Series is a multipurpose product line of managed layer 2 switches ideal for industrial applications, including manufacturing, rail transportation (telecommunication and signaling), road transportation (traffic control), and Smart Cities.

With fanless operation and a wide operating temperature range of -40° to 75°C, the robust IS230 Series easily tolerates harsh and demanding environments, such as those found in industrial and outdoor deployments.

An integrated voltage regulator ensures the PoE output voltage always stays at the rated value, regardless of any fluctuations in the input voltage of powered devices. An extended input voltage range makes the IS230 Series ideal for deployment in traffic control cabinets.

Network resiliency

The IS230 Series supports highly stable and reliable network switching. You can customize the IS230 with X-Ring protocol to prevent network connection failure. X-Ring protocol recovers network faults within 20ms. It supports couple-ring, dual-ring and dual-homing network topologies. Dual-homing is available even if the other network is running a different ring protection protocol such as RSTP or STP.

Securing the Network Edge
Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers network guests Internet access, while ensuring the integrity of private network data.

Quality of Service
Comprehensive wire-speed QoS provides flow-based traffic management with Port/Tag Base and Type of Service prioritization. Bandwidth control limits ingress/ egress traffic and broadcast/ multicast/flooded unicast packets.

Gigabit and Fast Ethernet support
The IS230 Series offers combo ports supporting both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). Support for both SFP types allows organizations to stay within budget even as they migrate to faster technologies.

Configurable power budget
On PoE-sourcing IS230 switches, all LAN ports source POE+ up to 30W. You can configure both the overall power budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU).

Dual power inputs
The IS230 Series provides redundant power inputs for higher system reliability; the power inputs are protected against reverse polarity and over-current.

The integrated voltage regulator allows a wide input voltage range and ensures the PoE output voltage always stays at the rated value, regardless the fluctuation on input voltage.

ECO friendly
The IS230 Series are Energy Efficient Ethernet (EEE) devices. They facilitate power saving by switching off parts of the LAN that are not transmitting or recieving data. This sophisticated feature can significantly reduce operating costs, by reducing the power requirements of the switch and any associated cooling equipment.
Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP (mini-GBIC)
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Physical Characteristics
Form Factor:
  • DIN Rail Mountable
  • Wall Mountable
Height:
6"
Width:
2.9"
Depth:
4.1"
Weight (Approximate):
2.65 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0767035215259
UPC: 767035215259
EAN: 0767035215259
UNSPSC: 43222612
