Allied Telesis AT-GS950/24-10 Data Networking

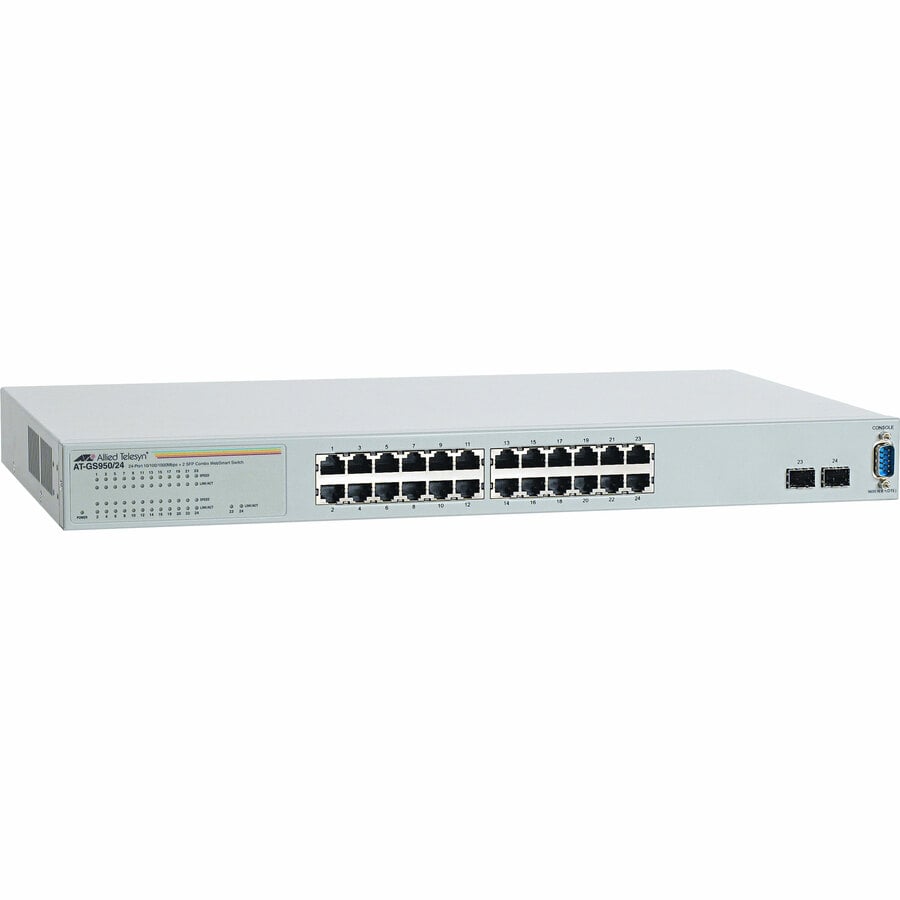

Allied Telesis - Allied Telesis AT-GS950/24 24 Port Gigabit WebSmart Switch, 24 x 10/100/1000Base-T
  • Effectively increases available bandwidth on your network
  • Features 24 networking ports to establish large network
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
  • Management capability allows maximum efficiency and with unrestricted control
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More

Need a different version? See all Allied Telesis Parts Security Equipments

$634.45
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Allied Telesis AT-GS950/24-10 Data Networking
Allied Telesis AT-GS950/24-10 Data Networking
Allied Telesis Parts Security Equipment Model Overview
Parts and products from Allied Telesis.
Allied Telesis AT-GS950/24-10 Data Networking Overview
Allied Telesyn's AT-GS950/24 WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network.
Interfaces/Ports
Total Number of Network Ports:
24
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • Web Based Management
  • Port based VLAN
  • 802.1p QoS
  • Port trunking/link aggregation
  • Port mirroring
  • Priority queue's
  • Spanning tree
  • Statistics & Diagnostics
Power Description
Frequency:
60 Hz
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rack-mountable
Height:
1.7"
Width:
17.3"
Depth:
10.1"
Weight (Approximate):
7.14 lb
Miscellaneous
Package Contents:
  • AT-GS950/24 24 Port Gigabit WebSmart Switch
  • Wall & 19" Rack mount brackets
  • U.S. power cord
Additional Information:
  • Non-Blocking Architecture
  • Link Aggregation
  • Port Setting (Speed, Availability, Flow Control)
  • Fanless Design
Certifications & Standards:

IEEE:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x

Electrical/Mechanical Approvals:

  • UL 1950
  • FCC/EN55022 Class A
  • VCCI Class A
  • C-Tick
  • EN60950 (TUV)
  • EN55024
  • CE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0696544716271, 0767035178431, 0999562143105
UPC: 696544716271, 767035178431, 999562143105
EAN: 0696544716271, 0767035178431, 0999562143105
UNSPSC: 43222612
