Alien ALR-9650-MY RFID Reader
Part Number:
ALR-9650-MY
Model:
ALR9650
Full specifications (PDF)

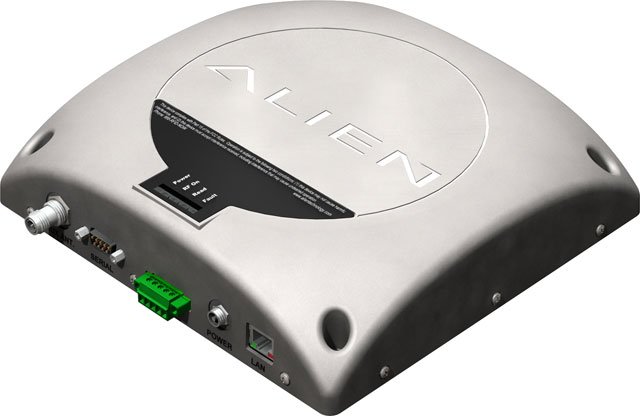

Alien ALR9650 RFID Reader Model Overview
The ALR-9650 Gen 2 RFID Reader with Integrated Antenna is the perfect solution for streamlined single- and dual-antenna applications. Combining high-performance RFID technology with a compact design, this reader simplifies installations, decreases costs, and enhances RFID operations. With Power-Over Ethernet (POE) capabilities and seamless software compatibility, users can swiftly start reading tags and implementing RFID solutions, all while enjoying a tidy and efficient setup.
Key features:
Specifications:
Key features:
- Simple, low-profile solution for single antenna applications
- Integrated high-performance circular antenna — measures only 9"x 9"
- POE option eliminates the need for costly AC power drops
- EPC Gen 2 Dense Reader Interoperable
- Second antenna port enables 2-antenna applications
- Manageable and upgradeable for future needs
Specifications:
- Model Number: ALR 9650
- Supported RFID Tag Protocols: EPC Gen 2; ISO 18000-6c
- Reader Protocols: Alien Reader Protocol
- LAN Protocols: DHCP, TCP/IP, NTP
- Frequency: 902.75 MHz - 927.25 MHz
- Channels: 50
- Max RF Power: 4 watts EIRP with internal antenna
- Power Supply: 24 VDC supplied via AC/DC converter or POE
- Dimensions: (L) 9.13" x (W) 9.0" x (D) 2.0"
- Weight: 1.0 kg (2.2 lb) max
- Operating Temperature: 0°C to +50°C (32°F to +122°F)
- Compliance Certification: FCC Part 15, UL 60950
Brand
Alien
Model
ALR9650
Get help from a Barcoding Expert!
The Alien ALR-9650-MY RFID Reader is also known as
ALN-ALR-9650-MY
