Full specifications (PDF)
Height:
3.9"
Width:
2.5"
Depth:
1.7"

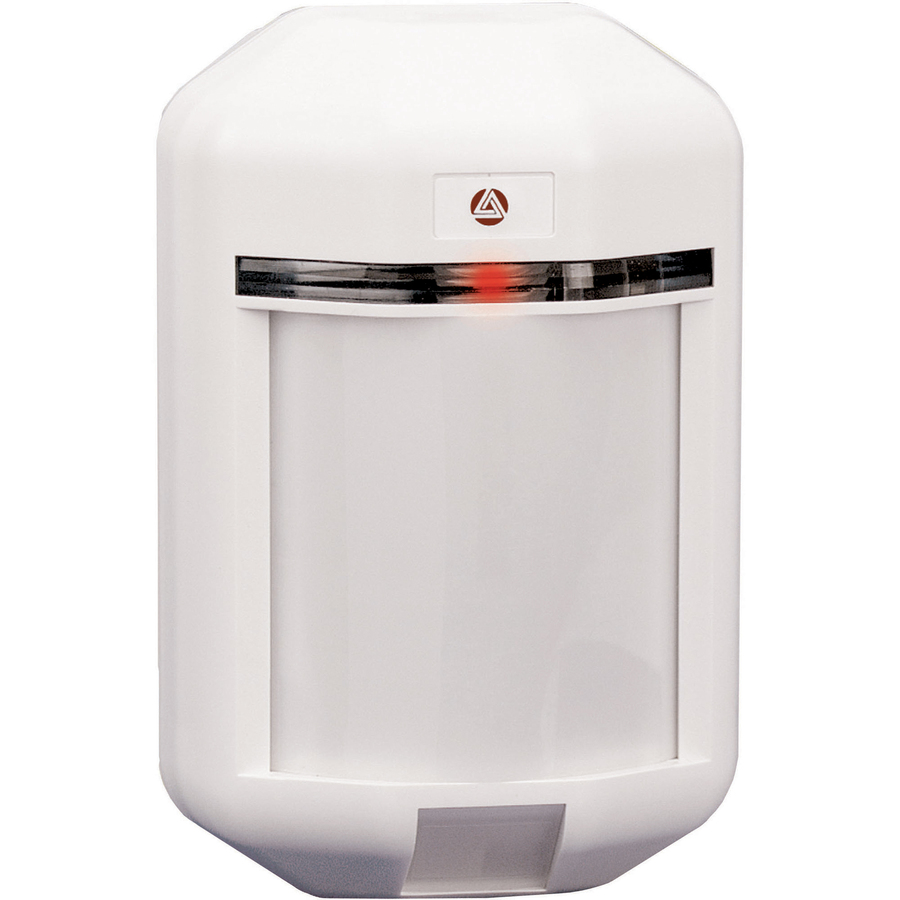

Aleph XP Series Motion Detector Model Overview
The Aleph XP Series Passive Infrared Detector is loaded with unique innovations which give you reliable detection and freedom from false alarms. Superior white-light and RFI immunity, SMD circuitry, and unique copper-plated circuit board provide outstanding performance and sensitivity. The low-cost XP Series Passive Infrared Detector incorporates a fully tested dual pyroelectric element, jumper electable 2/4 pulse count, and a walk-test LED. This detector is pet-immune up to 30lbs and has a coverage of 40ft x 50ft and 30 detection zones.
Physical Characteristics
Miscellaneous
Additional Information:
- XP-43SL zones 34 pet Imunnity 100lb
- Alarm Indicator : Red LED
- Mounting Height : 4.9 to 8.5 feet
- Alarm Period : Approx. 2 seconds
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
46171608
Get help from a Barcoding Expert!
The Aleph XP-43SL Motion Detector is also known as
ALP-XP43SL
