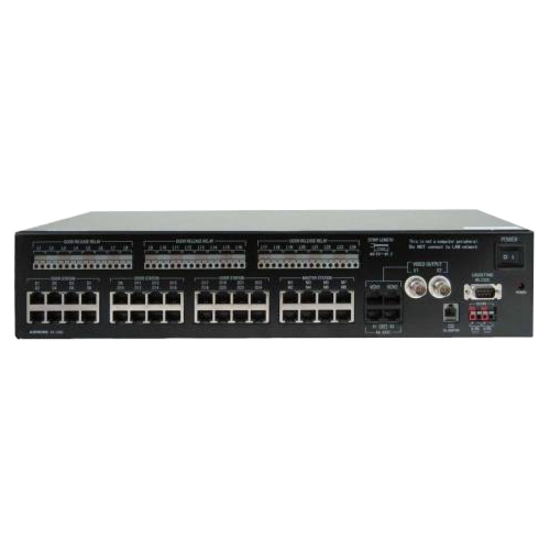

The AX-248C is a Central Exchange Unit for the AX Integrated Audio & Video Security system. Audio/ Video and/or Audio-only Master or Door Stations connect directly to this unit via homerun CAT-5e wiring and RJ45 jacks.
The AX-248C supports up to 8 Master Stations and up to 24 Door/Sub stations. The AX series can be expanded in increments of 32 for up to 120 Door/ Sub stations with the use of AX-320C add-on CEU's.
The CEU handles the calling and communication signals for the system, as well as providing selective door release outputs, video outputs, DVR trigger outputs, and CO line transfer output. System set-up and a variety of functions are programmed in the CEU with the use of the supplied software. Power is applied directly to the CEU via two PS-2420UL power supplies. The serial connection is for uploading the system programming, for raw RS232 data output, or for system monitoring via supplied program.
- AX-248C Intercom Central Exchange Unit
- Mounting Screws (For 19-inch Rack mounting)
- USB to Serial Programming Cable With Driver
- Rack/Wall Mounting Brackets
- Mounting Screws
- QuikStart Guide
- Installation CD
- 2 BNC composite video outputs and video switching triggers
- 24 Door release dry contacts (24V AC/DC 500mA)
- Wiring hub for AX system using CAT-5e cable
- 2 24V DC power supply input terminals
- Controls all functionality of AX system
- 24 Door / sub station ports (RJ45)
- 8 Master station ports (RJ45)
