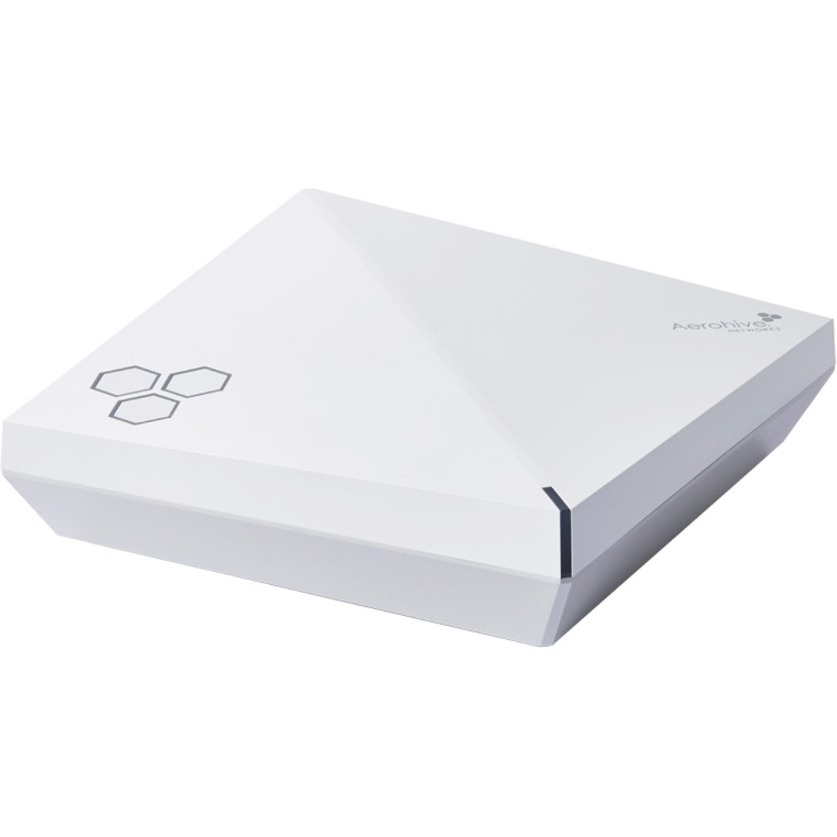

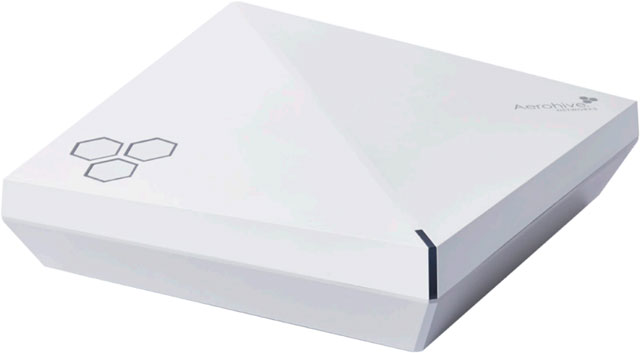

Aerohive AH-AP-550-AC-FCC Access Point

The Aerohive AH-AP-550-AC-FCC Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Aerohive AP550 - Aerohive AP550 IEEE 802.11ac 3.46 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - Desktop, Wall Mountable, Ceiling Mountable
  • Two 4x4:4 radios; software selectable 2.4GHz/5Ghz and 5 GHz for 3.46 Gbps data rates
  • RF-IQ antenna innovation
  • Integrated BLE (BlueTooth Low Energy)
  • Plenum-rated indoor access point
  • Dual 1 GE ports for aggregation or security
  • USB interface for IoT readiness
  • PoE redundancy between the two port for high availability
  • Trusted Platform Module (TPM)-Hardware-based key storage and encryption
  • Wireless privacy & authentication - WPA and WPA2 Wi-Fi CERTIFIED , Private PSK
  • Encryption: AES/CCMP, TKIP, RC4 (WEP only)
  • Granular user profile-based management defines QoS, mobility policies, and security policies for each user that enters the network
  • Stateful L2- L7 firewalls
  • Integrated AVC (Application Visibility and Control)
  • MACsec to help secure communication on the point to point link between the access point and the access switch port
  • Built-in spectrum analyzer with support for device identification
  • Zero Wait Dynamic Frequency Selection (DFS) allows for fast channel switches to DFS channels
Read More

Need a different version? See all Aerohive AP550 Access Control Systems

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Aerohive AH-AP-550-AC-FCC Access Point
Aerohive AH-AP-550-AC-FCC Access Point Aerohive AH-AP-550-AC-FCC Access Point
Aerohive AH-AP-550-AC-FCC Access Point
Aerohive AH-AP-550-AC-FCC Access Point
Full specifications (PDF)
Aerohive AP550 Access Control System Model Overview
AP550 is powerful enough to provide important enterprise-grade features – including built-in application visibility and control, RADIUS, DHCP, Captive Web Portal, WIPS, Location services and Spectrum analysis.Many bandwidth hungry critical business applications are accessed over wireless networks; Wi-Fi infrastructures are expected to provide required speed and capacity, and user experience is measured beyond jitter and latency. Number and types of mobile devices that are connecting to Wi-Fi is exponential, and large numbers of new devices that do not require human intervention are joining wireless networks every day.
Aerohive AH-AP-550-AC-FCC Access Point Overview
Performance optimized indoor 802.11ac Wave 2 Dual-Radio 4x4:4 MIMO access point with internal antenna Today many bandwidth-hungry critical business applications are accessed over wireless networks. Wi-Fi infrastructures are expected to provide required speed and capacity, and user experience is measured beyond jitter and latency. Number and types of mobile devices that are connecting to Wi-Fi is exponential and large numbers of new devices that do not require human intervention are joining wireless networks every day. AP550 is engineered for these very demanding environments, featuring 802.11ac Wave 2 dual-radio, 4x4:4 MIMO with the software defined radio that allows IT managers to enable 802.11ac 5 Ghz performance on both radios. Built-in BLE (Bluetooth Low-Energy) radio enables indoor proximity and location tracking. AP550 is powerful enough to provide all the enterprise-grade features including built-in application visibility and control, RADIUS , DHCP, Captive Web Portal, WIPS, Location services and Spectrum analysis.

Key Benefits
  • High performance with software selectable radio and RF-IQ antenna technology for instant adaptation to the capacity needs
  • Managed from public or private cloud -based HiveManager management platform
  • Integrated BLE ( BlueTooth Low-Energy) and USB interface for IoT readiness
  • Application Visibility and Control functionality, including reporting, stateful firewall, and powerful Aerohive Quality of Service (QoS) on the access point
  • Enterprise software features including RADIUS, DHCP server, location services and spectrum analysis are combined with hardware assisted security and zero-touch deployment
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 5 GHz
  • 2.40 GHz
Total Number of Antennas:
12
Number of Internal Antennas:
12
Wireless Transmission Speed:
3.46 Gbit/s
MIMO Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
  • Ceiling Mountable
Height:
2.2"
Width:
8.2"
Depth:
8.2"
Weight (Approximate):
2.40 lb
Miscellaneous
Package Contents:
  • AP550 802.11ac Wave 2 Wireless Access Point
  • Ceiling Tile Flush 15/16"
  • Wall Mount Locking Accessory
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0728350937868, 0739420107425
UPC: 728350937868, 739420107425
EAN: 0728350937868, 0739420107425
UNSPSC: 43222631
