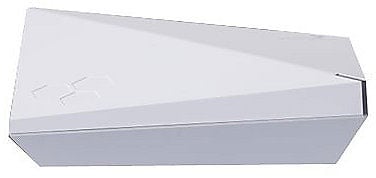

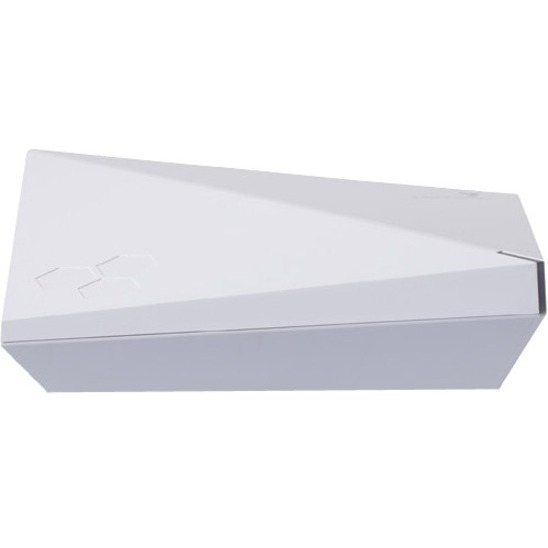

Aerohive AH-AP-122-AC-FCC Access Point
Aerohive AH-AP-122-AC-FCC Access Point
Aerohive AP122 -
Aerohive Connect AP122 IEEE 802.11ac 867 Mbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - Gigabit Ethernet - Desktop, Wall Mountable, Ceiling Mountable
- Engineered for coverage
- Future-proof deployment
- Small, lightweight, and innovative design
- Full 802.11ac performance with IEEE 802.3af power
Need a different version? See all Aerohive AP122 Access Points
Please Call for Pricing
or to Purchase
or to Purchase
Full specifications (PDF)Designed for coverage-oriented environments as well as IoT and location-based services
AP122 provides dual 802.11n or 11n/ac performance with data rates up to 867 Mbps using existing 802.3af PoE infrastructure. Versatile and cost-effective, AP122 is optimally suited for coverage oriented, low-to medium capacity environments. Running powerful HiveOS coupled with innovative distributed Cooperative Control architecture, AP122 brings the best of coverage and advanced 802.11ac technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services.
Aerohive AH-AP-122-AC-FCC Overview
Versatile and cost-effective, AP122 is optimally suited for coverage-oriented, low-to-medium capacity environments. AP122 features dual 2x2, 2-stream radios, providing dual 802.11n or 11n/ac performance with data rates up to 867 Mbps using existing 802.3af PoE infrastructure.
Running powerful HiveOS coupled with innovative distributed Cooperative Control architecture, AP122 is a value-priced solution to bring the best of coverage and 802.11ac technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services.
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
- 2.40 GHz
- 5 GHz
Total Number of Antennas:
5
Number of Internal Antennas:
5
Wireless Transmission Speed:
867 Mbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
- Ceiling Mountable
Height:
1.8"
Width:
6.7"
Depth:
6.7"
Weight (Approximate):
1.13 lb
Item Numbers
UNSPSC:
43222631
The Aerohive AH-AP-122-AC-FCC is also known as AH-AP-122-AC-FCC or AHAP122ACFCC .
