Adtran 4242924L3 Data Networking Device

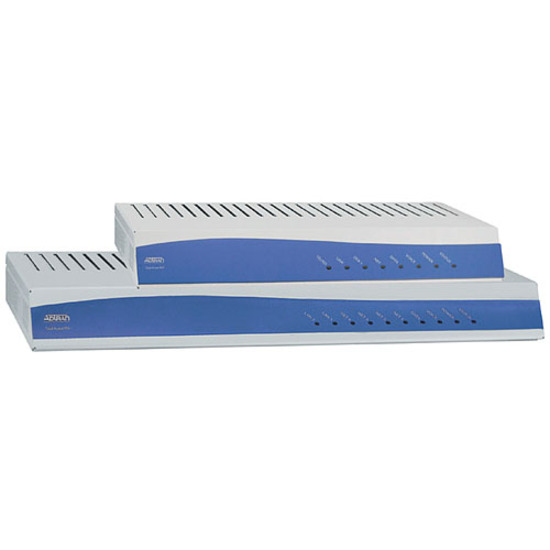

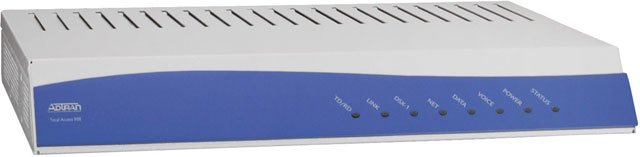

Adtran Total Access 900 Series - Total Access 924e IP Business Gateway - 4 x T1/FT1 WAN, 2 x 10/100Base-TX LAN, 1 x
Converged Access solutions for trunking and hosted VoIP networks

Adtran offers a wide variety of solutions for converged voice/data services. The Total Access 900 Series of T1 and Multi-T1 IP Business Gateways are designed for carrier Ethernet and SIP/MGCP Voice over IP (VoIP) networks. These products feature all of the same robust routing and voice features of the widely deployed Total Access Integrated Access Devices (IADs), along with a host of new features and functions that enable costeffective, reliable IP service delivery. These devices use the Adtran Operating System (AOS) to simplify management and administration. Multiple models offer fexibility for varied applications from PRI delivery and trunking services to Hosted IP PBX offering

General Information

  • Product Type: Router
  • Product Series: 900e
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 924e
  • Product Name: Total Access 924e IP Business Gateway
  • Product Line: Total Access

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Width: 17.2"
  • Depth: 8.5"
  • Form Factor:
    • Rack-mountable
    • Wall Mountable
    • Desktop
  • Weight (Approximate): 5.50 lb


  • Number of Network (RJ-45) Ports: 2
  • Total Number of Ports: 7
  • Management Port: Yes
  • Number of RJ-11 Ports: 24
  • Number of RJ-48 Ports: 4

Management & Protocols

  • Security Features:
    • PAP
    • NAT
    • NAPT
    • CHAP
    • Packet Filtering
    • Access Control Lists
    • Stateful Inspection Firewall
    • Application Level Gateways
    • Denial of Service (DOS) Protection

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • VoIP Supported: Yes
  • Network Technology:
    • 10/100Base-TX
    • T1/FT1


  • Additional Information:
    • Call Waiting
    • Do Not Disturb
    • Distinctive Ring


  • Flash Memory: 32 MB
  • Standard Memory: 128 MB
  • Memory Technology: SDRAM

Power Description

  • Input Voltage: 120 V AC
  • Power Source: Power Supply


  • Limited Warranty: 10 Year

Media & Performance

  • Carrier Supported: T-carrier

Full specifications (PDF)


The Adtran 4242924L3 is also known as ADN-4242924L3 .
