Full specifications (PDF)
Total Number of Ports:
30
Adtran 4242924L1 Data Networking
Part Number:
4242924L1
Model:
Total Access 900 Series

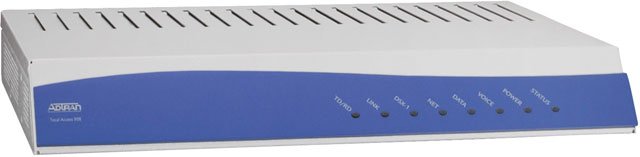

Adtran Total Access 900 Series Data Networking Model Overview
The Total Access 900/900e Series IP Business Gateways from ADTRAN is a robust solution designed for seamless voice and data integration over advanced VoIP networks. These gateways accommodate a range of applications from PRI delivery to Hosted IP PBX offerings, ensuring reliable and cost-effective IP service delivery. With its feature-rich ADTRAN Operating System (AOS), this device simplifies management and administration while offering flexibility in connectivity, including support for analog phones, fax machines, and more. Built within a durable metal case with optional battery backup, these products provide uninterrupted service and peace of mind for businesses.
Key Features
- Seamless voice and data integration over VoIP networks
- Up to 24 analog POTS interfaces and multiple T1 options
- Integrated full-featured IP router for data support
- Stateful inspection firewall for enhanced security
- Quality of Service (QoS) for VoIP traffic prioritization
- 10-year warranty for reliability
Specifications
- Physical Interfaces:
- Single/Quad T1/FT1 (900/900e Series)
- Single/Dual Ethernet (10/100Base-T)
- Digital Voice:
- RJ-48C T1 CAS/PRI support
- Legacy analog support with up to 24 FXS ports
- Processor and Memory:
- 64/128 Mb RAM
- 32 Mb Flash
- Power:
- 120 VAC, 60 Hz
- Optional 8-hour battery backup
- Security:
- Stateful Inspection Firewall
- Network Address Translation (NAT)
Adtran 4242924L1 Data Networking Overview
ADTRAN offers a wide variety of solutions for converged voice/data services. Our new Total Access 924e Multi-T1 SIP-based multiservice access gateway is the next generation of ADTRAN's industry-leading Integrated Access Devices.
Interfaces/Ports
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Ethernet Technology:
Fast Ethernet
VoIP Supported:
Yes
Management & Protocols
Security Features:
- NAT
- SSH
- PAP and CHAP
- Stateful Inspection Firewall
- Denial of Service (DOS) Protection
- Access Control Lists
- Application Level Gateways
- Packet Filtering
Memory
Standard Memory:
64 MB
Flash Memory:
16 MB
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Height:
1.7"
Width:
17.2"
Depth:
8.5"
Weight (Approximate):
5.50 lb
Miscellaneous
Additional Information:
- VoIP Protocol: SIP
- G.168 Echo Cancellation
- DSX-1 for PBX connectivity
CODECs:
- G.711-64k PCM
- G.729a-8k CS-ACELP
Item Numbers
GTIN:
0607565025730, 0663387787553
UPC:
607565025730, 663387787553
EAN:
0607565025730, 0663387787553
UNSPSC:
43222609
