Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Adtran Parts Accessory Model Overview
Products and parts from Adtran.

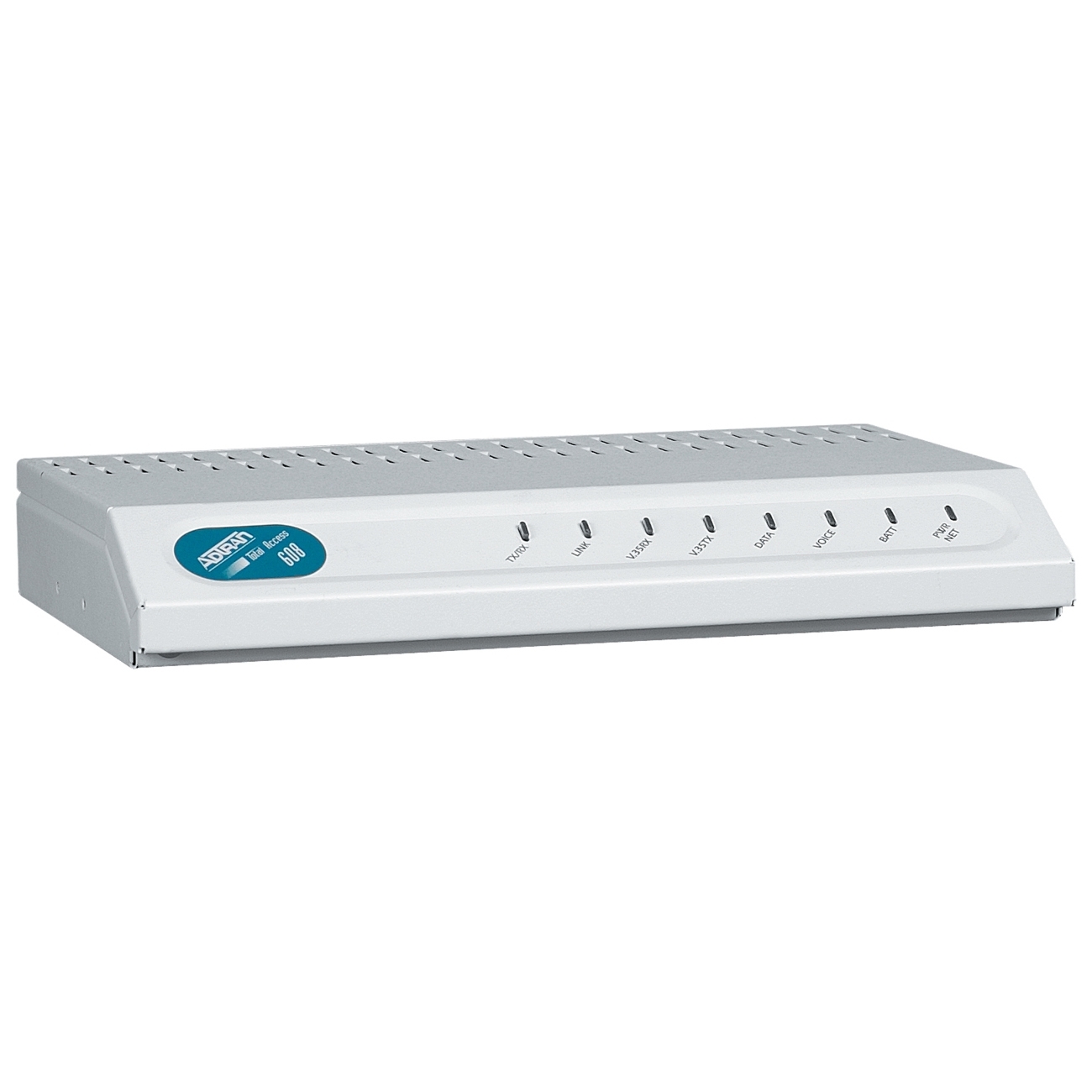

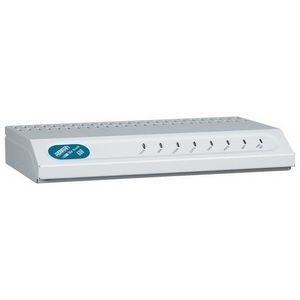

Adtran 4213680L1#ATM Data Networking Overview
With millions of small to medium sized enterprises existing today, the requirement for carriers to provide integrated voice and data solutions is growing at a rapid rate. ADTRAN delivers with the Total Access System of Multiservice Access Platforms and Integrated Access Devices. The Total Access 608 is cost effective, fixed-port, integrated access devices designed to support ATM. These systems offer enterprise users and integrated communications providers, such as CLECs, ILECs, and ISPs, a means to offer combined voice and data traffic over a single network interface terminating at the customer's premises.

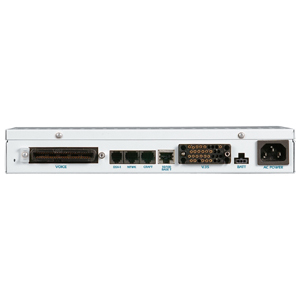

The Total Access 608 provides eight fixed analog voice interfaces. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 608 provide a builtin IP router and an integrated Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and dataservices into a single platform. The Total Access 608 are compatible with industry leading VoBB Gateways. The FXS interfaces support all popular CLASS features.
The Total Access 608 provides eight fixed analog voice interfaces. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 608 provide a builtin IP router and an integrated Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and dataservices into a single platform. The Total Access 608 are compatible with industry leading VoBB Gateways. The FXS interfaces support all popular CLASS features.
Interfaces/Ports
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
- 10/100Base-TX
- DSX-1
- T1
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
- Wall Mountable
- Desktop
Height:
2"
Width:
11.3"
Depth:
7.5"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
- T1 ATM with DSX-1
- Designed for VoDSL applications
- Includes Echo Cancellation and ADPCM compression resources
- Integral IP router via 10/100BaseT Ethernet
- V.35 synchronous DTE interface
- Assured Dialtone with Lifeline POTS
- Rugged metal casing
- Voice Codes: PCM, 32k ADPCM
- Echo cancellation, 8 ms echo tail
- Idle channel suppression
- Supports popular CLASS features
- Modes: FXS Loop Start, Ground Start
- Ringing: balanced, 15 REN, total
- Programmable DC offset: 45Vrms -60Vrms
- Copper Mountain Compatible
- Rate-adaptive, enhanced spectral compatibility
Certifications & Standards:
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.3U
- RFC 1483
- RFC 2364
- I.610
- G.165
- G.168
- G.711
- G.726
- Agency Approvals:
- EN55022
- EN50082-1
- EN60950
- ETSI 300-386-2
- UL1950
- CUL
- FCC Part 15 (Class A)
- FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565012730
UPC:
607565012730
EAN:
0607565012730
UNSPSC:
43222609
