Adtran 4213616L1#TDM

Adtran Total Access 600 Series T1 TDM - Total Access 616 T1 TDM Gateway - 16 x FXS, 1 x Serial, 1 x T1 WAN, 1 x DSX-1 WAN, 1 x 10/100Base-TX LAN
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
  • With DSX-1 technology, get up to 1.544Mbps data transfer rate over service provider link
  • Rack mounting enables you to organize wires & secure cables for professional installation
Read More
$1,395.02
Global Supply Chain Constraints; Order now to be first when stock is available

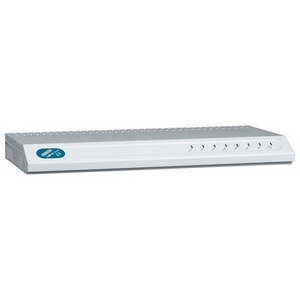

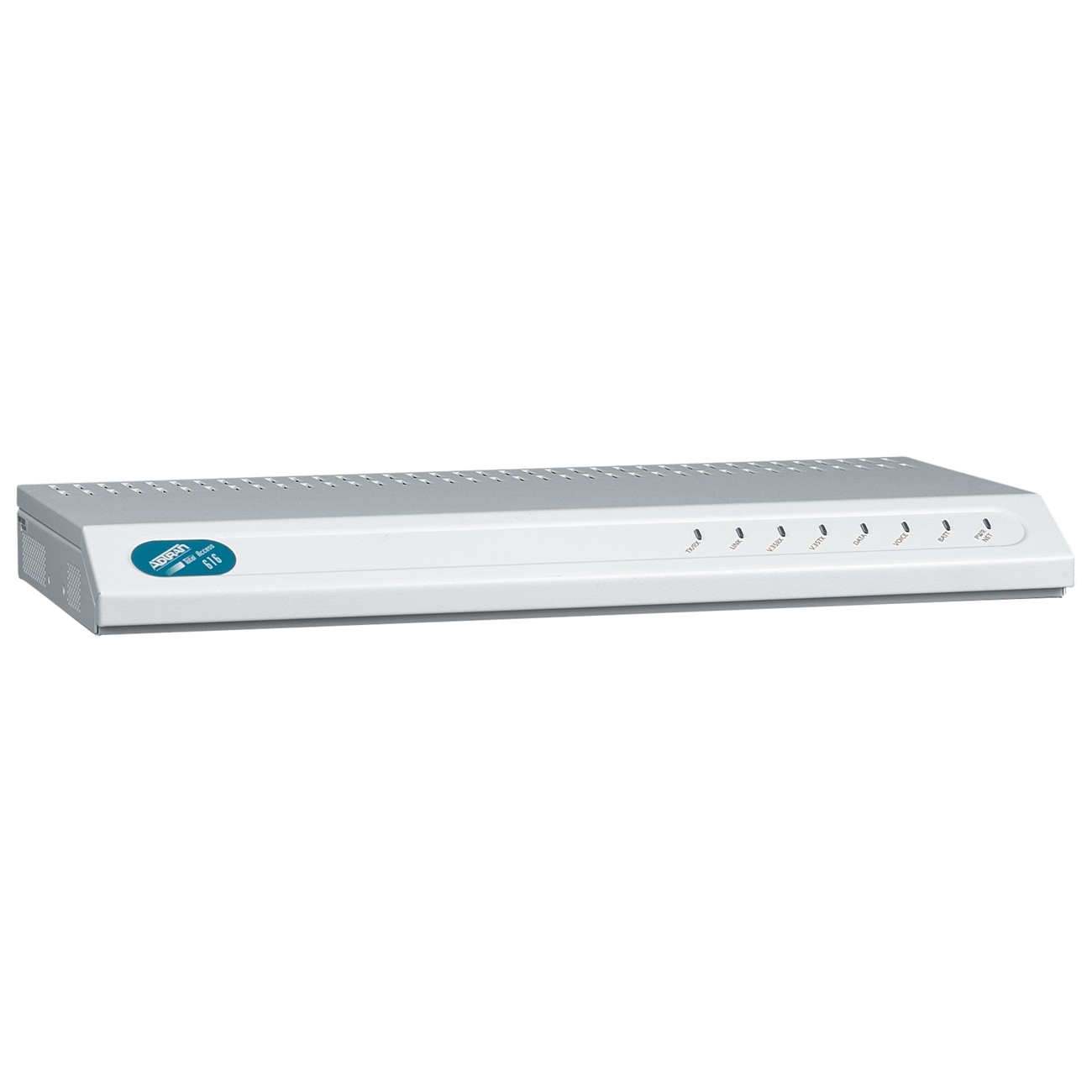

Total Access 616 from Adtran.
Adtran 4213616L1#TDM Overview
With millions of small- to medium-sized enterprises existing today, the requirement for carriers to provide integrated voice and data solutions is growing at a rapid rate. ADTRAN delivers with the industry-leading Total Access Integrated Access Devices (IADs). The Total Access 616 is cost-effective, fixed-port, IADs designed to support emerging packet architectures. This IADs offer enterprise users and integrated communications providers, such as CLECs, ILECs, and ISPs, a means to offer combined voice and data traffic over a single network interface terminatingat the customer's premises.

The Total Access 616 provides 16 fixed analog voice interfaces voice capacity for large voice applications. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 600 series IADs provide a built-in IP router and Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and data services into a single platform. Total Access IADs are compatible with industry-leading DSLAMs and voice gateways for packet-based applications. The FXS interfaces support all popular CLASS features. For PBX connectivity these IADs are also available with a built-in DSX-1 interface for digital voice applications, depending on the part number selected.
Protect Your Product

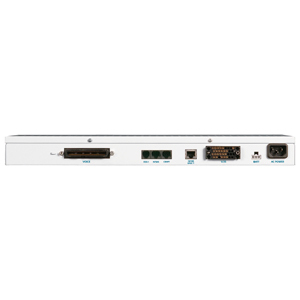

Interfaces/Ports
Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
  • 10/100Base-TX
  • DSX-1
  • T1
Management & Protocols
Security Features:
  • PAP, CHAP, EAP and Radius
  • NAT with multi-point to single-point
  • Future support for NAT multi-point to multi-point
  • PAT with DHCP
  • Filtering (Pattern, IP, Bridge)
  • Password protection
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Wall Mountable
  • Desktop
Height:
1.8"
Width:
17"
Depth:
8.5"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
  • Seamless voice and data integration over T1 or packet-based architectures
  • TDM and nextgeneration packet support
  • Integral IP router for data support and Internet access
  • DSX-1 for PBX connectivity
  • Rugged metal case
  • Optional battery backup
  • Copper Mountain CE fragmentation support
  • FRF.5 and FRF.8 support (V.35)
  • Modes: FXS Loop Start, Ground Start
  • Assured Dialtone Lifeline POTS port
  • Ringing: unbalanced, 20 REN, continuous, output ring voltage 105 Vrms, nominal
  • Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
  • Line Code: AMI/B8ZS
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.1D
  • IEEE 802.3U
  • Agency Approvals:
  • EN55022
  • EN50082-1
  • EN60950
  • ETSI 300-386-2
  • UL 1950
  • CUL
  • FCC Part 15 (Class A)
  • FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0607565012440, 7426802214262
UPC: 607565012440
EAN: 0607565012440, 7426802214262
UNSPSC: 43222609


The Adtran 4213616L1#TDM is also known as ADN-4213616L1TDM or 4213616L1TDM .
