Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1

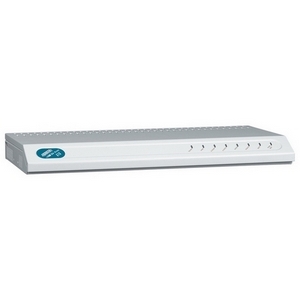

Adtran Total Access 616 Data Networking Model Overview
Total Access 616 from Adtran.
Adtran 4213616L1#ATM Data Networking Overview
With millions of small- to medium-sized enterprises existing today, the requirement for carriers to provide integrated voice and data solutions is growing at a rapid rate. ADTRAN delivers with the industry-leading Total Access Integrated Access Devices (IADs). The Total Access 616 is cost-effective, fixed-port, IADs designed to support emerging packet architectures. This IADs offer enterprise users and integrated communications providers, such as CLECs, ILECs, and ISPs, a means to offer combined voice and data traffic over a single network interface terminatingat the customer's premises.
The Total Access 616 provides 16 fixed analog voice interfaces voice capacity for large voice applications. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 600 series IADs provide a built-in IP router and Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and data services into a single platform. Total Access IADs are compatible with industry-leading DSLAMs and voice gateways for packet-based applications. The FXS interfaces support all popular CLASS features. For PBX connectivity these IADs are also available with a built-in DSX-1 interface for digital voice applications, depending on the part number selected.
The Total Access 616 provides 16 fixed analog voice interfaces voice capacity for large voice applications. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 600 series IADs provide a built-in IP router and Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and data services into a single platform. Total Access IADs are compatible with industry-leading DSLAMs and voice gateways for packet-based applications. The FXS interfaces support all popular CLASS features. For PBX connectivity these IADs are also available with a built-in DSX-1 interface for digital voice applications, depending on the part number selected.
Interfaces/Ports
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
- 10/100Base-TX
- DSX-1
- T1
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Height:
1.8"
Width:
17"
Depth:
8.5"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
- Seamless voice and data integration over T1 or packet-based architectures
- ATM and nextgeneration packet support
- Integral IP router for data support and Internet access
- With DSX-1 for PBX connectivity
- Rugged metal case
- Optional battery backup
- Multiprotocol over ATM
- QoS Support: VBR-rt (voice), UBR (data)
- Echo cancellation, 8ms echo tail
- Idle channel suppression
- Copper Mountain CE fragmentation support
- FRF.5 and FRF.8 support (V.35)
- Modes: FXS Loop Start, Ground Start
- Assured Dialtone Lifeline POTS port
- Ringing: unbalanced, 20 REN, continuous, output ring voltage 105 Vrms, nominal
- Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
- Line Code: AMI/B8ZS
- Voice Codes: PCM, 32k ADPCM
Certifications & Standards:
- RFC 1483
- RFC 2364
- IEEE 802.3
- IEEE 802.1D
- G.165
- G.168
- G.711
- G.726
- Agency Approvals:
- EN55022
- EN50082-1
- EN60950
- ETSI 300-386-2
- UL 1950
- CUL
- FCC Part 15 (Class A)
- FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565012457
UPC:
607565012457
EAN:
0607565012457
UNSPSC:
43222609
Get help from a Barcoding Expert!
The Adtran 4213616L1#ATM Data Networking is also known as
ADN-4213616L1ATM
